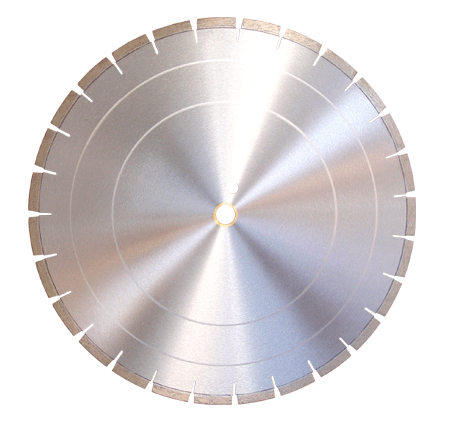

Granite cutting blade |
| The Granite cutting blade is special designed for dry cutting of stone materials,such as granite,sand stone,lime stone... |
Diameter |
Segment Width |
Segment Height |
4'' |
2.0mm |
7/10mm |
4.5'' |
2.0mm |
7/10mm |
5'' |
2.0mm |
7/10mm |
6'' |
2.0mm |
7/10mm |
7'' |
2.3mm |
7/10mm |
8'' |
2.3mm |
7/10mm |
9'' |
2.5mm |
7/10mm |
12'' |
2.8/3.2mm |
7/10mm |
14'' |
2.8/3.2mm |
7/10mm |
16'' |
3.2mm |
7/10mm |
18'' |
3.6mm |
7/10mm |
20'' |
3.6mm |
10mm |
24'' |
4.5mm |
10mm |
|
| Other saw segment height available according to
customer's requirment |
|
Free-er cutting blade with turbo teeth |
Our free-er cutting blade is medium-soft bond,it is specially for
fast cutting of granite,hard brick,clay pavers,cured concrete and hard rocks. |
Diameter |
Segment Width |
Segment Height |
7'' |
2.3mm |
7/10mm |
8'' |
2.3mm |
7/10mm |
9'' |
2.5mm |
7/10mm |
10'' |
2.5mm |
7/10mm |
12'' |
2.8/3.2mm |
7/10mm |
14'' |
2.8/3.2mm |
7/10mm |
16'' |
3.2mm |
7/10mm |
18'' |
3.6mm |
7/10mm |
20'' |
3.6mm |
10mm |
24'' |
4.5mm |
10mm |
|
|

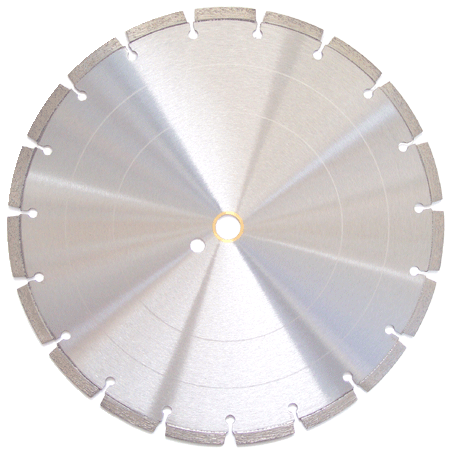

General cutting purpose saw blade |
| The general purpose saw blade is designed for general purpose cutting of bricks, block, slate, stone, Concrete,concrete pipe with superior efficiency. |
Diameter |
Segment Width |
Segment Height |
4'' |
2.0mm |
7/10mm |
4.5'' |
2.0mm |
7/10mm |
5'' |
2.0mm |
7/10mm |
6'' |
2.0mm |
7/10mm |
7'' |
2.3mm |
7/10mm |
8'' |
2.3mm |
7/10mm |
9'' |
2.5mm |
7/10mm |
10'' |
2.5mm |
7/10mm |
12'' |
2.8/3.2mm |
7/10mm |
14'' |
2.8/3.2mm |
7/10mm |
16'' |
3.2mm |
7/10mm |
18'' |
3.6mm |
7/10mm |
20'' |
3.6mm |
10mm |
22'' |
3.6mm |
10mm |
24'' |
4.5mm |
10mm |
|
|

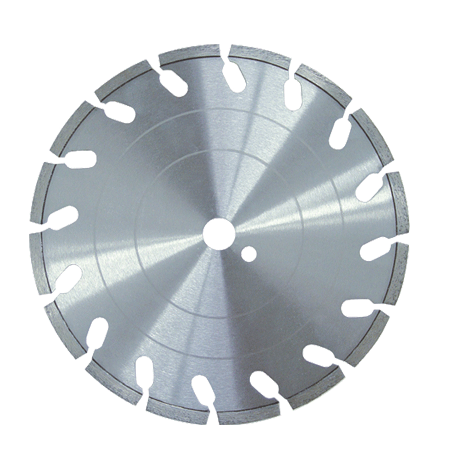

Cured cutting blade |
| The cured cutting blade is designed for various kinds of cured concrete cutting such as reinforced concrete,concrete pipe and concrete slab.Outstanding cutting speed and long life. |
Diameter |
Segment Width |
Segment Height |
9'' |
2.5mm |
7/10mm |
10'' |
2.5mm |
7/10mm |
12'' |
2.8/3.2mm |
7/10mm |
14'' |
2.8/3.2mm |
7/10mm |
16'' |
3.2mm |
7/10mm |
18'' |
3.6mm |
7/10mm |
20'' |
3.6mm |
10mm |
22'' |
3.6mm |
10mm |
24'' |
4.5mm |
10mm |
|
|
|

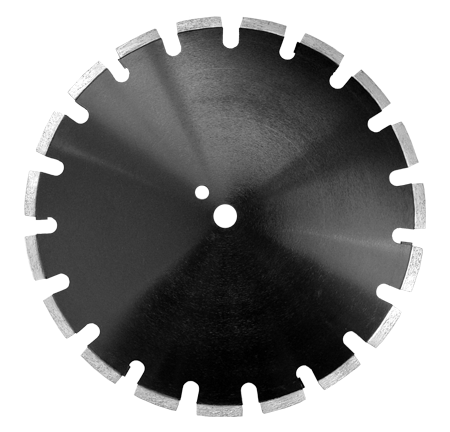

Concrete cutting blade |
| The concrete cutting blade is used for very abrasive materials cutting,such as,green concrete and cinder block.Maximum performance and long life. |
Diameter |
Segment Width |
Segment Height |
12'' |
2.8/3.2mm |
7/10mm |
14'' |
2.8/3.2mm |
7/10mm |
16'' |
3.2mm |
7/10mm |
18'' |
3.6mm |
7/10mm |
20'' |
3.6mm |
10mm |
22'' |
3.6mm |
10mm |
24'' |
4.5mm |
10mm |
|
|

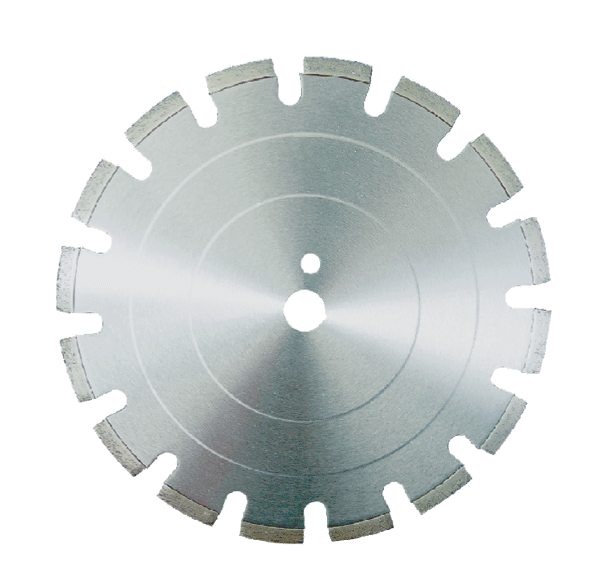

Asphalt Saw Blade |
| Our asphalt saw blade used for very abrasive materials such as,asphalt cutting and concrete over asphalt. |
|
Diameter |
Segment Width |
Segment Height |
12'' |
2.8/3.2mm |
7/10mm |
14'' |
2.8/3.2mm |
7/10mm |
16'' |
3.2mm |
7/10mm |
18'' |
3.6mm |
7/10mm |
20'' |
3.6mm |
10mm |
22'' |
3.6mm |
10mm |
24'' |
4.5mm |
10mm |
|
