| Diamond cup wheel is the ideal cup grinding wheel for concrete coatings,concrete grinding and stone grinding ,our diamond cup wheels offer aggressive grinding performance and long wheel working life. |
We supply 4 inch,5 inch,6 inch and 7 inch diamond cup wheels and PCD diamond wheels,cup wheel types can be single row diamond cup wheels,double row/rim diamond cup wheels and turbo cup wheels,we can make special wheels according to our customer's request on other specifiactions.
We aim to be your best diamond cup wheel supplier in China with consistent wheel quality and competetive price.
| We developed PCD diamond cup wheel according to customer's demand,it is PCD welded on the diamond cup wheel surface,the PCD cup wheels widely used in
many grinding applications,like removal of epoxy, glue and resin off of concrete coating floors ,diameter can be 4inch to 7 inch (105mm to 180mm) .
|
|
|
|
|

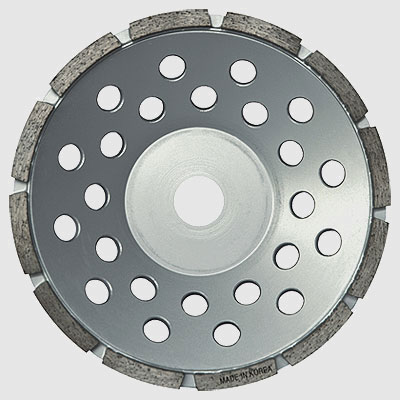

Diamond cup wheel-Single row
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (100mm) |
5.5×8×32mm |
8 |
| 4.5 inch(115mm) |
5.5×8×32mm |
9 |
| 5 inch (125mm) |
5.5×8×32mm |
10 |
|
|

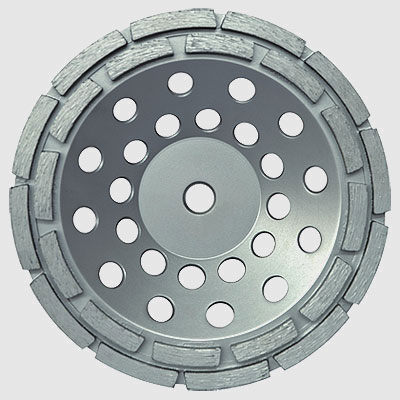

Diamond cup wheel-Double row
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (100mm) |
5.5×8×32mm |
6/8 |
| 4.5 inch(115mm) |
5.5×8×32mm |
7/9 |
| 5 inch (125mm) |
5.5×8×32mm |
8/10 |
| 7 inch (180mm) |
5.5×8×32mm |
10/12 |
|
|
|

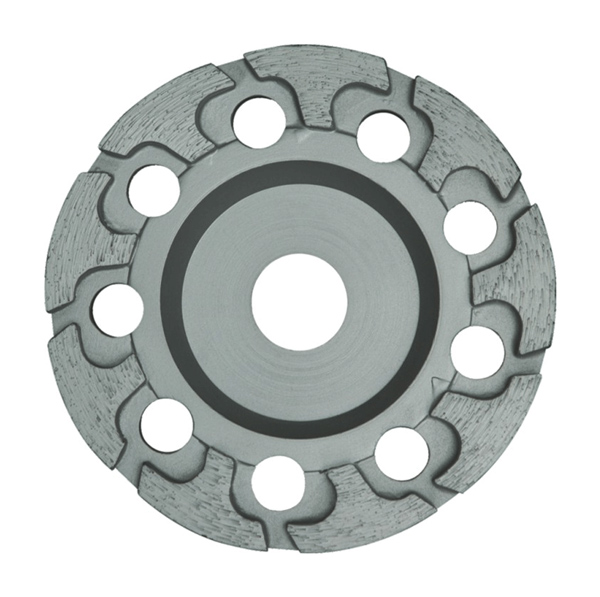

Segmented rim diamond cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4" inch (100mm) |
5.5×8×32mm |
10/8 |
| 4.5" inch(115mm) |
5.5×8×32mm |
18 |
| 5" inch (125mm) |
5.5×8×32mm |
20 |
| 7" inch (180mm) |
5.5×8×32mm |
12/24 |
| |
9" inch (230mm) |
5.5×8×32mm |
24 |
|
|
CAS diamond cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (105mm) |
4.5mm |
9 |
| 4.5 inch(115mm) |
4.5mm |
9 |
| 5 inch (125mm) |
4.5mm |
11 |
| 6 inch (150mm) |
4.5mm |
13 |
| 7 inch (180mm) |
4.5mm |
17 |
|
|

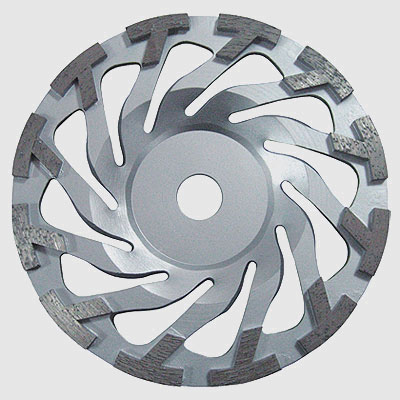

CAZ diamond cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (105mm) |
4.5mm |
8 |
| 4.5 inch(115mm) |
4.5mm |
8 |
| 5 inch (125mm) |
4.5mm |
10 |
| 6 inch (150mm) |
4.5mm |
12 |
| 7 inch (180mm) |
4.5mm |
16 |
|
|

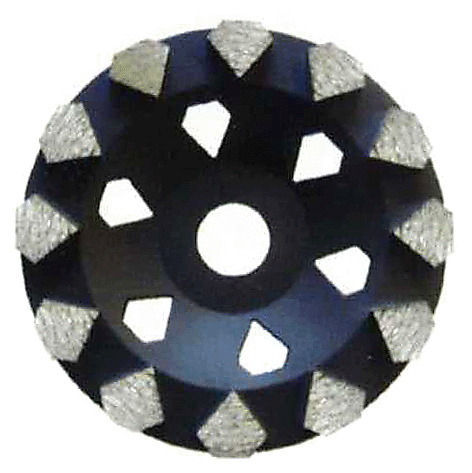

Diamond shape diamond cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (105mm) |
5.5mm |
10 |
| 4.5 inch(115mm) |
5.5mm |
11 |
| 5 inch (125mm) |
5.5mm |
12 |
| 6 inch (150mm) |
5.5mm |
14 |
| 7 inch (180mm) |
5.5mm |
16 |
|
|

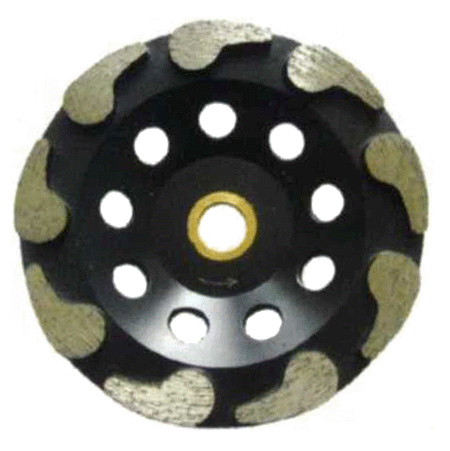

Polywog diamond cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (105mm) |
5.5mm |
7 |
| 4.5 inch(115mm) |
5.5mm |
8 |
| 5 inch (125mm) |
5.5mm |
9 |
| 6 inch (150mm) |
5.5mm |
11 |
| 7 inch (180mm) |
5.5mm |
12 |
|
|

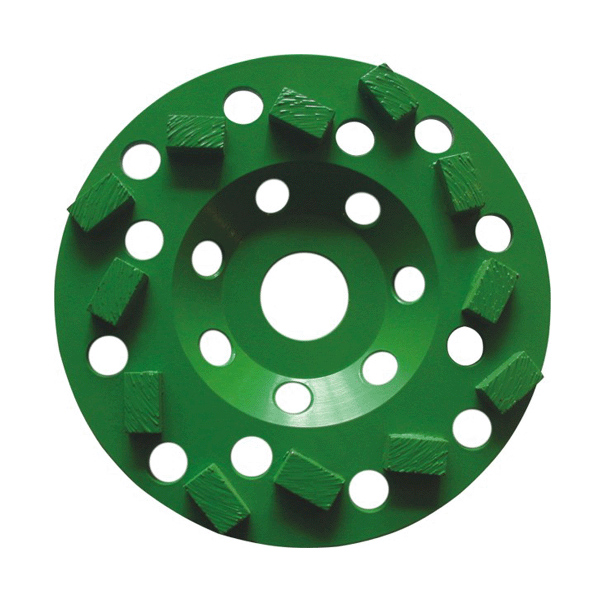

Raindrop diamond cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (105mm) |
5mm |
12 |
| 4.5 inch(115mm) |
5mm |
12 |
| 5 inch (125mm) |
5mm |
12 |
| 6 inch (150mm) |
5mm |
16 |
| 7 inch (180mm) |
5mm |
20 |
|
|
|

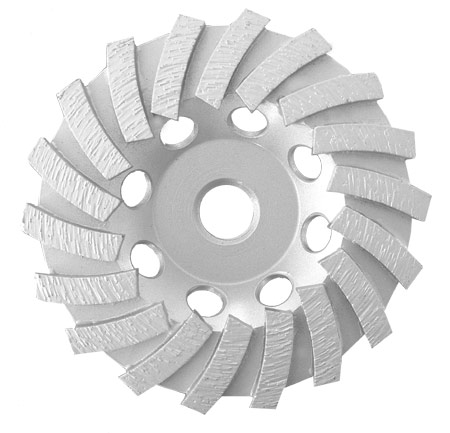

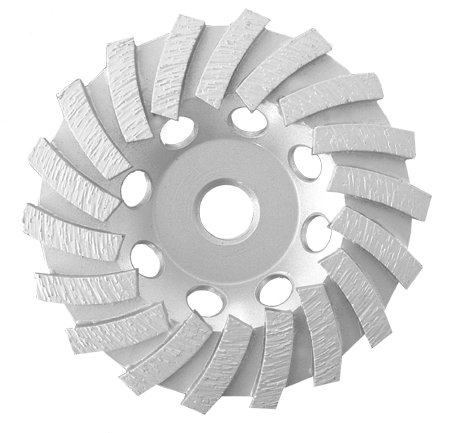

Segmented diamod cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (100mm) |
5mm/6mm |
8 |
| 4.5 inch(115mm) |
5mm/6mm |
9 |
| 5 inch (125mm) |
5mm/6mm |
10 |
| 7 inch (180mm) |
5mm/6mm |
14 |
|
|

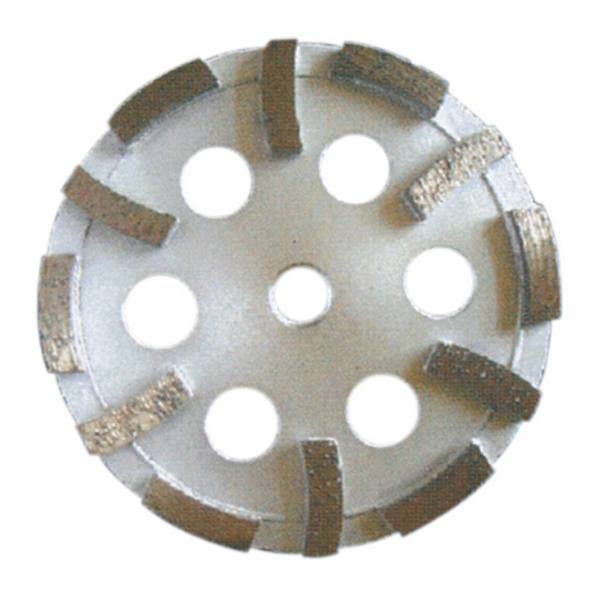

CBZ diamond cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (105mm) |
5mm |
8 |
| 4.5 inch(115mm) |
5mm |
10 |
| 5 inch (125mm) |
5mm |
12 |
| 6 inch (150mm) |
5mm |
12 |
| 7 inch (180mm) |
5mm |
9 |
|
|

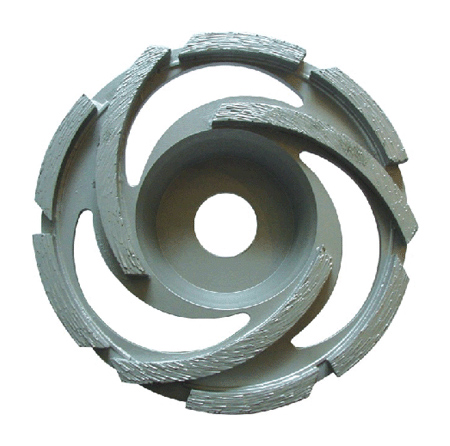

Fan type diamond cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (105mm) |
5mm |
9 |
| 4.5 inch(115mm) |
5mm |
9 |
| 5 inch (125mm) |
5mm |
9 |
| 6 inch (150mm) |
5mm |
12 |
| 7 inch (180mm) |
5mm |
12 |
|
|
Ccx diamond
cup wheel
|
Cup wheel Diameter(mm) |
Segment number |
| 100mm |
10 |
| 115mm |
11 |
| 125mm |
12 |
| 180mm |
14 |
|
|

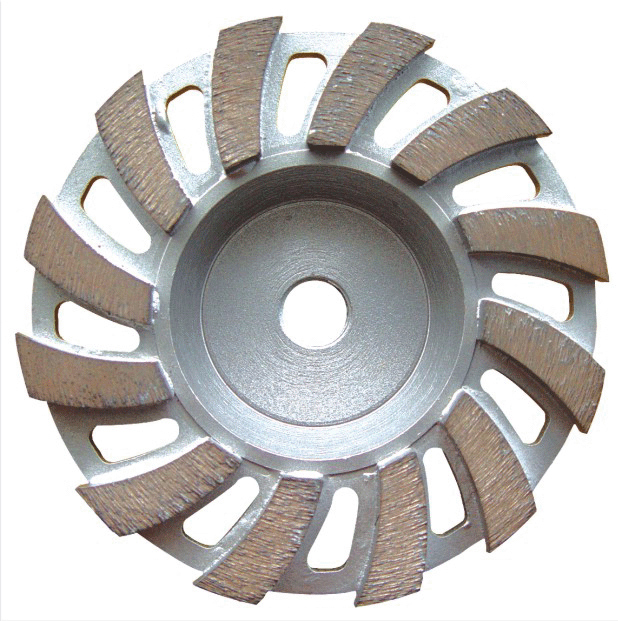

CCX cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (105mm) |
5mm |
12 |
| 4.5 inch(115mm) |
5mm |
14 |
| 5 inch (125mm) |
5mm |
16 |
| 6 inch (150mm) |
5mm |
16 |
| 7 inch (180mm) |
5mm |
18 |
|
|

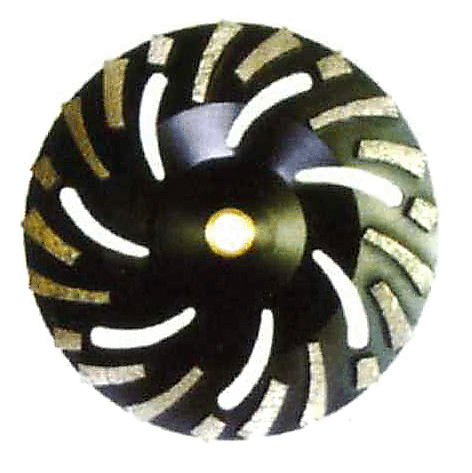

Group cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (105mm) |
5mm |
9 |
| 4.5 inch(115mm) |
5mm |
9 |
| 5 inch (125mm) |
5mm |
12 |
| 6 inch (150mm) |
5mm |
12 |
| 7 inch (180mm) |
5mm |
21 |
|
|

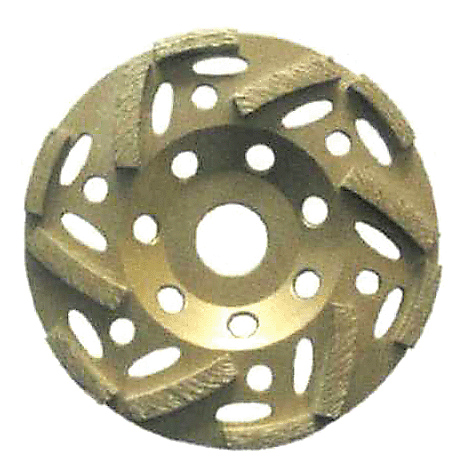

CCZ diamond cup wheel
|
Cup wheel Diameter(mm) |
Segment width |
Segment number |
| 4 inch (105mm) |
5mm |
8 |
| 4.5 inch(115mm) |
5mm |
10 |
| 5 inch (125mm) |
5mm |
12 |
| 6 inch (150mm) |
5mm |
14 |
| 7 inch (180mm) |
5mm |
16 |
|
|
Turbo cup wheel with aluminium core
|
Cup wheel Diameter(mm) |
Segment dimention |
| 100mm |
20mm×5.5mm |
| 100mm |
20mm×5.5mm |
|
