Diamond and CBN Grinding Wheels

Our diamond and CBN grinding wheel with various specifications and the grinding wheels include diamond resin bonded grinding wheel, CBN resin bonded grinding wheel, metal bond and vitrified bond diamond and CBN grinding wheels.

At present, grinding is one of main machining methods in finish machining and semi-finish machining and grinding wheel is an important grinding tool in the process of grinding machining. Grinding wheel is usually mounted on surface grinding machine, external circular grinding machine and internal circular grinding machine, and can also be mounted on grinding wheel machine, knife grinder and universal cutter grinder for grinding of cutting tool. According to different functions, grinding mode and type of grinding machine, grinding wheel is manufactured into ones with all kinds of shapes and sizes, and common grinding wheel includes plane grinding wheel, cylinder grinding wheel, double hypotenuse grinding wheel, cup grinding wheel, flaring cup wheel, disc wheel, centerless grinding wheel, etc.

Click following links for more info of our wheels:
- CBN grinding wheel for camshaft	- CBN grinding wheel for crankshaft
- CBN grinding wheel for slot edge grinding	- CBN flat wheel tapered both side
- Double-disk surface grinding wheel	- Internal diamond and CBN grinding wheel
- Race way CBN grinding wheel	- Cup,taper cup,saucer shaped wheel
- CBN grinding wheel for conical face and internal grinding

cup&taper cup grinding wheels

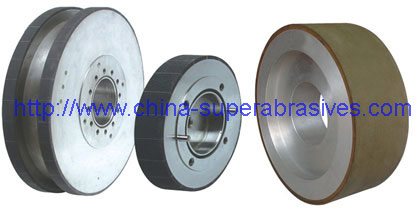

grinding wheel for camshaft

crankshaft grinding wheel

slot edge grinding wheel

internal cylindrical grinding wheel


	enlarge image


	enlarge image


	enlarge image


	enlarge image


	enlarge image

Type Drawing	Type Name	Type Drawing	Type Name
	Flat grinding wheel-1A1		diamond grinding wheel-12A9
	Ultra thin&Hi- precision cutting wheel		diamond grinding wheel-12C9
	diamond grinding wheel-4A2		diamond grinding wheel-12C9
	diamond grinding wheel-4BT9		diamond grinding wheel-12V2
	Cup grinding wheel-6A2		diamond grinding wheel-12V4
	Diamond/CBN grinding wheel-6A9		diamond grinding wheel-12V5
	double rim wheel-6A9		diamond grinding wheel-12V9
	diamond double surface wheel-9A3		diamond grinding wheel-14A1
	11A2 abrasive wheel		14EE1 grinding wheel
	11V2 wheel		14F1 wheel
	11V9 wheel		14FF1 wheel
	12A2-20° dish type grinding wheels		14U1 wheel
	12A2-45° grinding wheels		14V1 wheel

CBN grinding wheels

- CBN grinding wheel for camshaft

- CBN grinding wheel for crankshaft

- CBN grinding wheel for slot edge grinding

- CBN flat wheel tapered both side

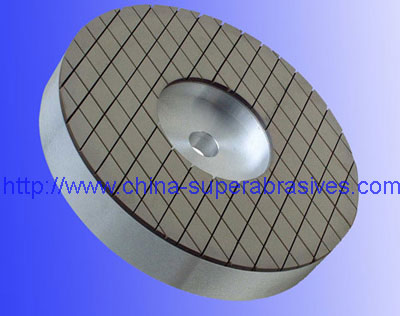

- Double-disk surface grinding wheel

- Internal grinding wheel

- Race way CBN grinding wheel

- CBN grinding wheel for conical face and interal grinding

- Cup,taper cup,saucer shaped wheel

Our grinding tools ( diamond & cbn grinding wheel ) for the machining of hard materials comprise the complete range of international used shapes and geometries. The tools are mainly used in the following shapes:

1. straight diamond wheel in periphery
1) solid-diamond wheel throughout type1a8

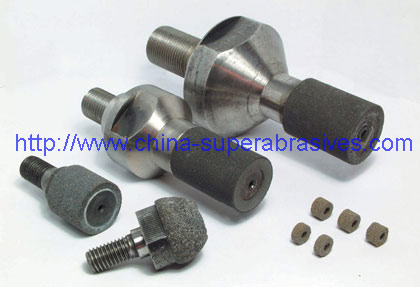

2) mounted wheel type dw
3) high precision thin grinding wheel type 1a1
4) straight-diamond wheel type 1a1
5) type 1a1 toolmaker's relife
6) type 6a1 recess one side
7) type 9a1 recess two side
8) type 3a1 hub one side
9) type 14a1 hub two side
10) type 1a1centerness

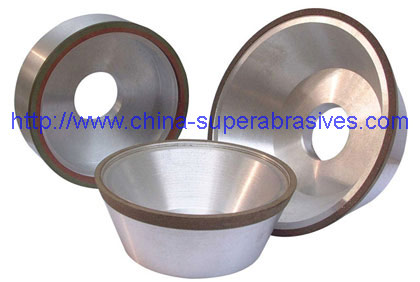

2. plain cup-diamond wheel
1) plain cup-diamond wheel in rim type 6a2 6a2b 6a2h 6a2t
2) plain cup-diamond in cornertype 6a9
3. solid diamond wheel throughout
type 4b1
4. dual diamond wheel in rim
type 9a3
5. arc diamond wheel
type 1f1
6. facing diamond wheel in rim
type 4a2p
7. flaring diamond wheel
1)bowl-diamond wheel
2)bowl-diamond wheel in rim type 11a2
3)flaring bowl-diamond in corner 11v9
4)dish-diamond wheel in corner type 12v9
5)saucer-diamond wheel type 15v9

To meet your requirements in every respect,we need the following information:

1.Shape and Dimension of the wheel

2.Grit size

3.Concentration

4.Bond(Resin,Metal,Vitrified)

5.Quantity

6.In addition to the above,please include the following details to insure accurate production

A.Working condition

Machine name & HP

RPM of Diamond or CBN Wheel

RPM of workpiece

Infeed(mm/pass)

Total removal

Wet or Dry

Cycle time

Grinding method

Dressing method

B.Workpiece

Material of workpiece

Hardness of workpiece

C.Required Quality

Surface roughness(Ra)

Concentricity

Straightness

Others

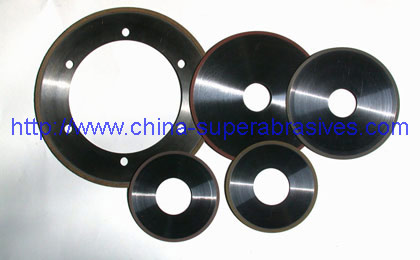

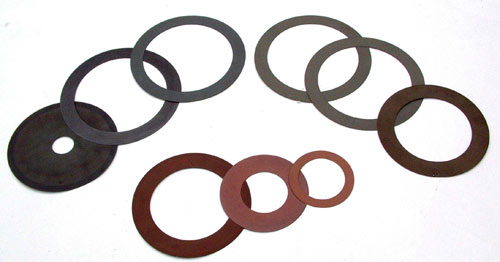

Ultra-thin diamond cutting wheels, Click for more	Hi precision quartz cutting wheels,Click for more

We developed ultra thin diamond cutting wheels and high precision diamond cutting blades for cutting ,slicing, sicing, wafering, cut-off, singulation, grooving, slotting, gross sectioning, gang sawing, slabbing, rough cutting and other applications,the thickness can be 0.3mm,0.4mm,0.5mm,1.0mm,2.0mm etc.

We successfully selling diamond and CBN wheels to USA,UK,India (Surat and Mumbai),Thailand (Bangkok) ,Belgium,Spain,France,Italy,Germany and other countries and areas .

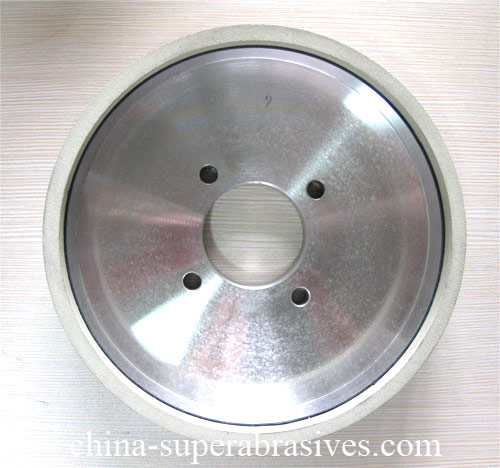

Diamond bruting wheel (vitrified bond diamond wheels) (cilck to see more of diamond bruting wheels)

CBN grinding wheel：Suitable for machining hard and tough materials such as：high-vanadium steel,harden steel,die steel,cast iron,cold harden cast iron,nichrome cold harden cast iron,eutectic alloy cast iron,titanium alloy,iron materials,etc.

Diamond Grinding Wheel：Suitable for machining hard and brittle materials such as:hard alloy,optical glass,semiconductor,magnetic material,agate,crystal jam,etc.

Mixed(diamond+CBN)abrasive wheel：Suitable for machining cast steel,cast iron,neodymium iron boron materials.
