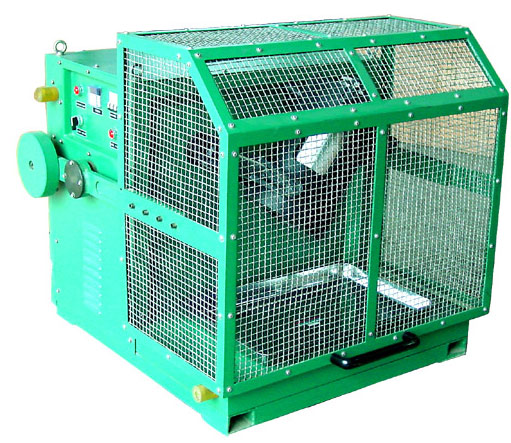

TURBO MIXER


The mixer is designed for mixing metal powder and diamond powder. It is fit for diamond tools, powder metallurgy, chemical industry etc.

  • There are movements of accelerating decelerating, shaking etc. during each turn.
  • Adjustable mixing time, mixing speed.
  • Homogeneity, high efficiency, less oxidation for mixing powders.


MIXER TECHNICAL DATA
Model
MX2
MX6
MX12
MX18
Power supply
220/380V,50/60Hz 3phases
Power (kw)
0.18
0.75
0.75
1.1
Volume of Container(L)
2
6
12
18
Form of container
Plastic cask
Plastic cask
stainless steel
Plastic cask
Rotation speed(RPM)
18/28/40
18/28/40
18/28/40
16/28
Mixing time
Adjustable from 1 second to 100 hours
Overall dimension(mm)
540×428×383
800×700×580
850×760×600
1012×960×706
Weightkg)
60
150
180
260

         NOTE：
　　　1.We will reserve the right to modify any technical data ofthe machine.
　　　2.It is possible to make the machine according to customer's demands.
