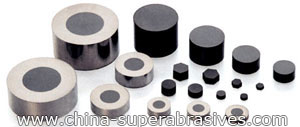

                                       Diamond PCD Wire Drawing Die

——Self-Supported and Tungsten Carbide Supported Blanks for Wire Drawing Applications.

Diamond/PCD wire drawing die blanks from our Company have the advantages of longer service life, and PCD die blanks are polished on one side or on both sides. As wire drawing die has evener and finer micro structure nearly without abnormal nucleation, so when drawing metal wires, they embody higher surface finish and brightness. Isotropic material on the view of macroscopic, so omnidirectional abrasion wearing during processing and usage. Our diamond PCD wire drawing die has advantages in high hardness, good abrasive resistance, high strength, good thermal conductivity, low friction coefficient with nonferrous metal, good anti-cohesive property, erosion resistance and chemical durability. so our diamond PCD wire drawing die is widely used in mechnical processing and especially important in ultraprecision machining.

diamond PCD wire drawing die diamond PCD wire drawing die
diamond mesh size microstructure
5 μm
10 μm
30 μm
40 μm

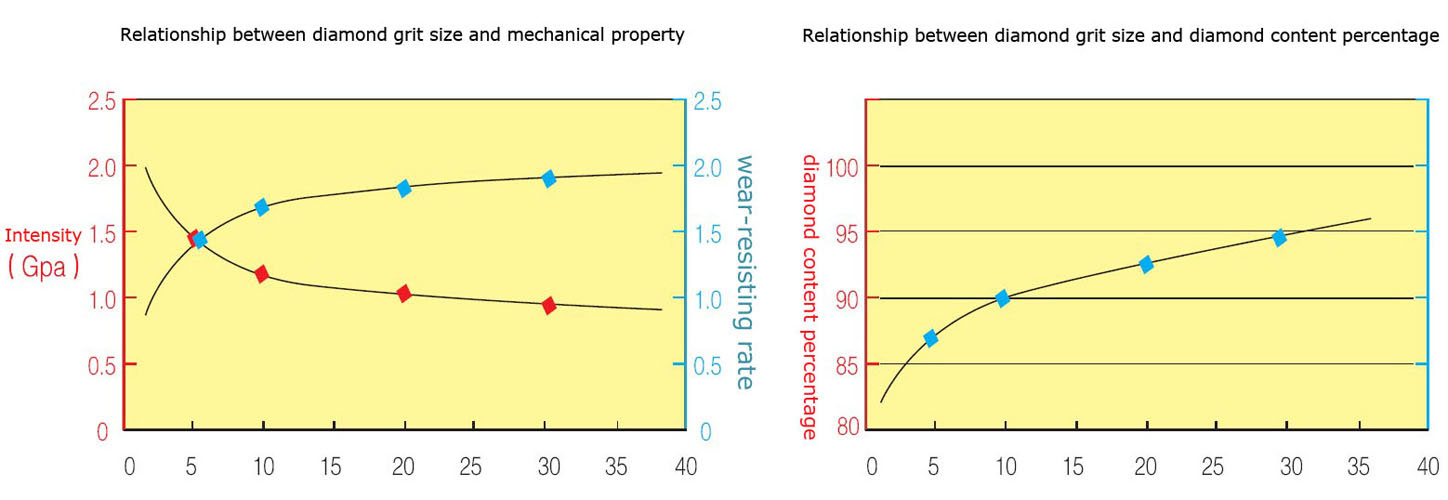

graph
diamond PCD wire drawing die
diamond PCD wire drawing die
diamond mesh size microstructure
diamond PCD wire drawing die graph

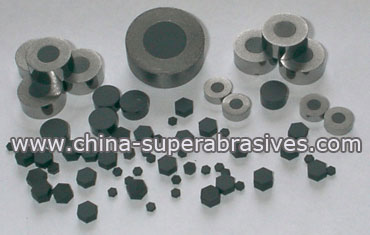

Our diamond wire drawing die blanks are polycrystalline diamond (PCD) products made under ultra-high temperature and ultra-high pressure, they are suitable for high-speed drawing of nonferrous wires such as bronze, aluminum, nickel, stainless steel and other alloy wires. We have TS diamond PCD wire drawing die, RHD diamond PCD wire drawing die, imported diamond PCD wire drawing die, CVD wire drawing die, Monocrystalline diamond wire drawing die.

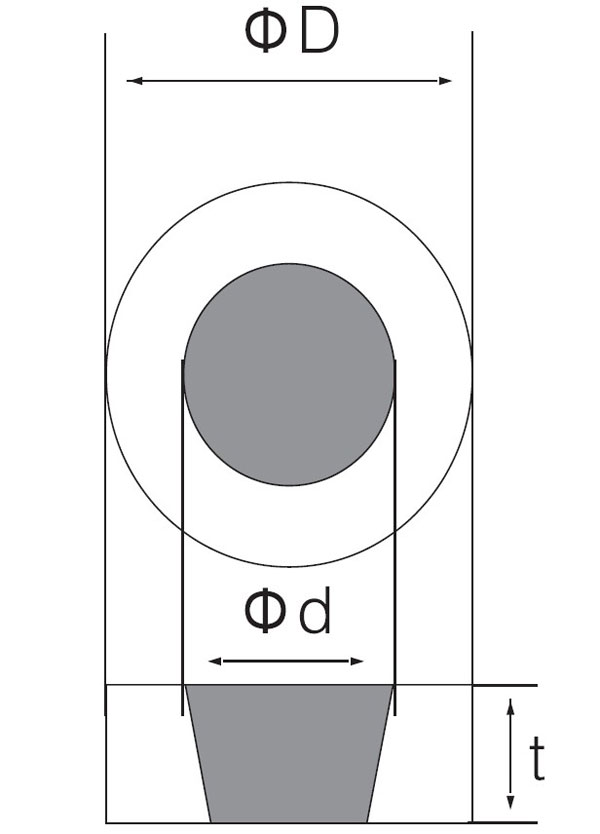

                                 TS diamond PCD wire drawing die blanks

Festures for embedded wire drawing die with support
1). The PCD material after various processing and measurements,it can guarantee the PCD diamond high grade quality,not like other suppliers’ products that good in appearance but the inner size is very soft
2). The special Cone design , easy to find the input and ouput side,it can realise the carbide ring to protect the PCD diamond,it can afford high shock during wire drawing process.
3). Since the embedded design,it can provide enough centripeta holding power,so when in nesting,you do not need the metal powder sintering process, just use “cold nesting” is OK.
4). We use cobalt bond and also thermostabile non-cobalt bond/matrix,or thermostabile silicon bond PCD or thermostabile CVD diamond bond ,so they can be sued for HT drawing and High Speed drawing.

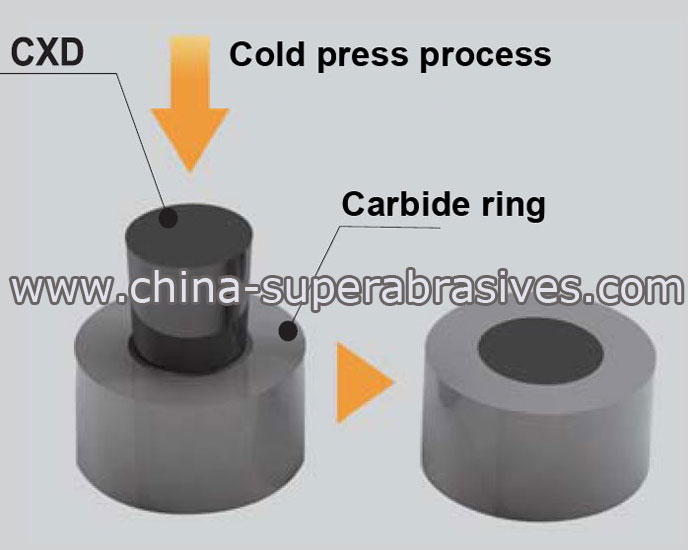

cold press diamond PCD wire drawing die cold press diamond PCD wire drawing die cold press diamond PCD wire drawing die cold press diamond PCD wire drawing die

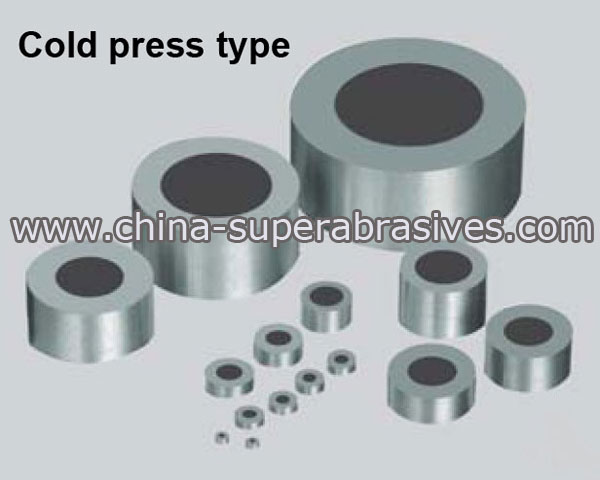

cold press TS diamond PCD wire drawing die blanks
cold press TS diamond PCD wire drawing die blanks

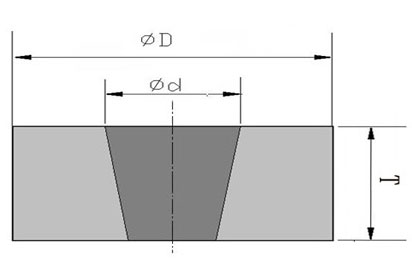

size chart of cold press wire drawing die blanks
size chart of cold press diamond PCD wire drawing die blanks

Specification

Size (mm)

Eccentricity tolerance (mm)

Outer diameter(D)

Inner diameter(d)

Thickness(T)

D15-R4023

9.50

4.50

2.30

≦0.2

D18-R4029

9.50

4.50

2.90

≦0.2

D21-R7040

14.00

7.60

4.00

≦0.25

D24-R7053

14.00

7.60

5.30

≦0.25

D27-R12080

28.00

13.00

8.00

≦0.25

D30-R150120

30.00

15.00

11.50

≦0.25

Specification

PCD diameter(mm)

Outer diameter for the carbidering(mm)

Thickness
(mm)

D15 (4023)

4.0

9.5

2.3

D18 (4029)

4.0

9.5

2.9

D21 (7040)

7.0

14.0

4.0

D24 (7053)

7.0

14.0

5.3

D27 (12080)

12.0

28.0

8.0

D30 (150115)

15.0

30.0

11.5

Quality Comparisation Chart



Our Wire drawing die series

Similar products in foreign countries

Foreign products
(Convenitional type with support)

Size range

D15,D18,D21,D24,D27,D30,
and other Special Custom Made items
ordered by customers

Embedded wire drawing die
from Sumitomo,Japan
WD960(D33), WD970(D36)

D12 and bigger standard
wire draiwng die with support

Outer diameter of carbide ring

According to our standard,
bigger than the international standard

According to international standard

According to international standard

PCD diamond cone angle

Yes

Yes

None

Transversal crack resistance capability

Strong

Strong

Normal

Longitudinal crack resistance capability

Strong

Strong

Normal

Relict destructive stress in the inner side

Very small

Very small

Some big and some small

PCD Quality

High

High

Inner soft or unevenly in
sintering process occasionally

Production cost of wire drawing die

High

High

Comparatively low

Qualified rate of die making

High

High

Got risks for transverse cracking
and longitudinal crack

Bushing craft of stainless steel bush

Recommend cold bushing,
hot bushing tolerable



cold bushing for large specification
hot bushing for small specification

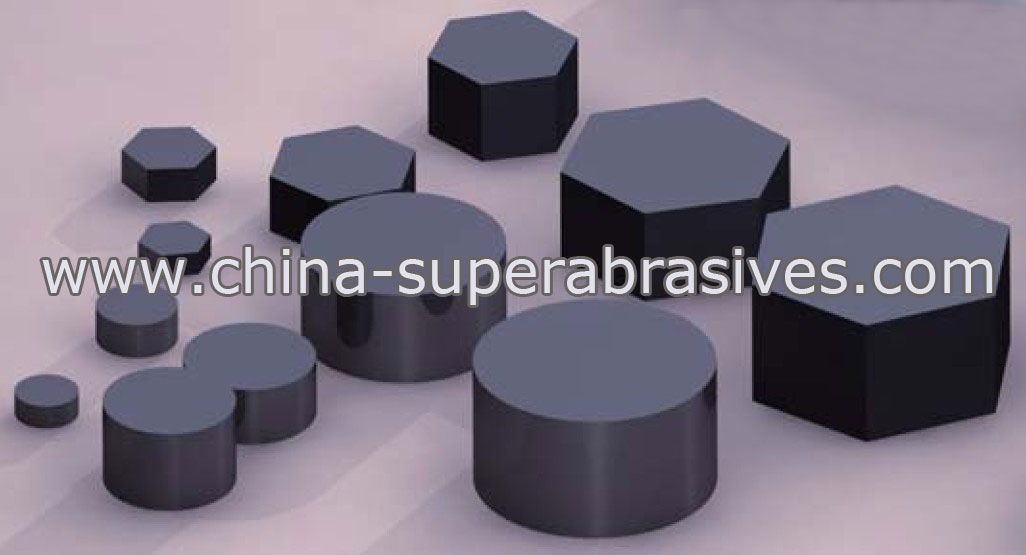

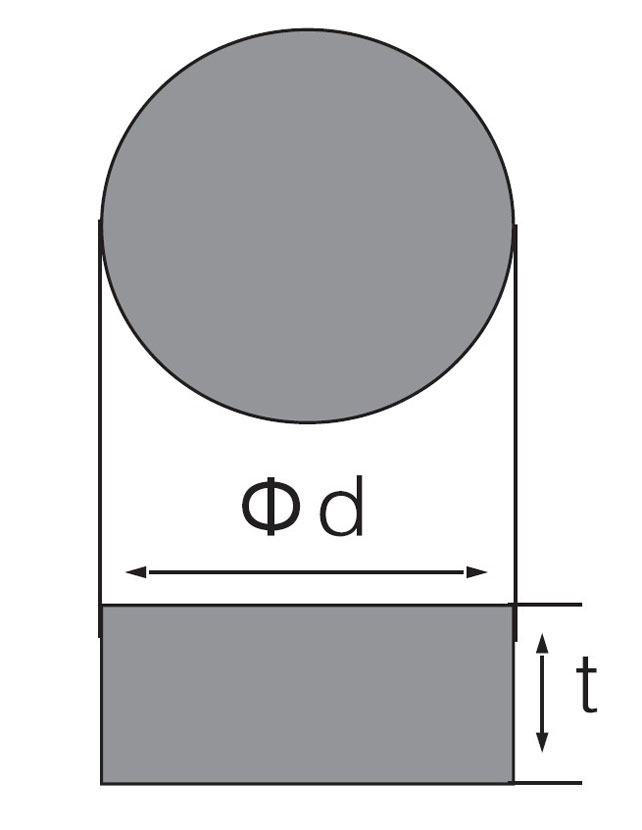

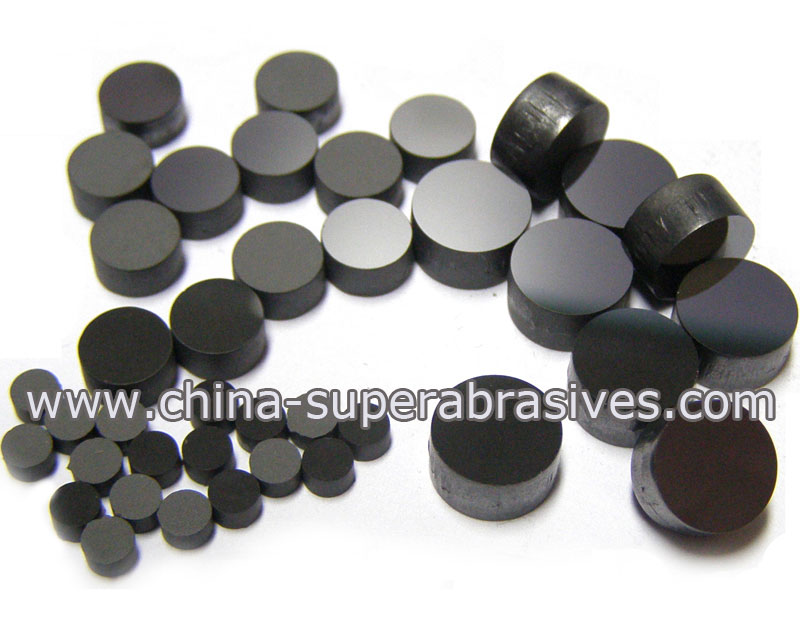

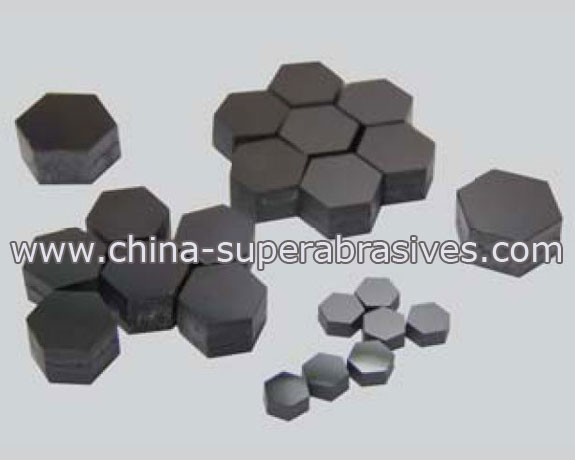

                                       RHD PCD wire drawing die blanks

Our RHD diamond PCD wire drawing die has microstructure in compact and homogeneous distribution, seldom appears the situation of clustering phenomenon or diamond grain growing big abnormally. so more easy for porting and polishing, and provide high smooth finish, prolong service life of mould for drawing wire. Now the 5μm fine mesh size diamond wire drawing die is accepted by overseas customers. Abrasion ratio of wire drawing die is 0.7~1 million

diamond PCD wire drawing die blanks diamond PCD wire drawing die blanks

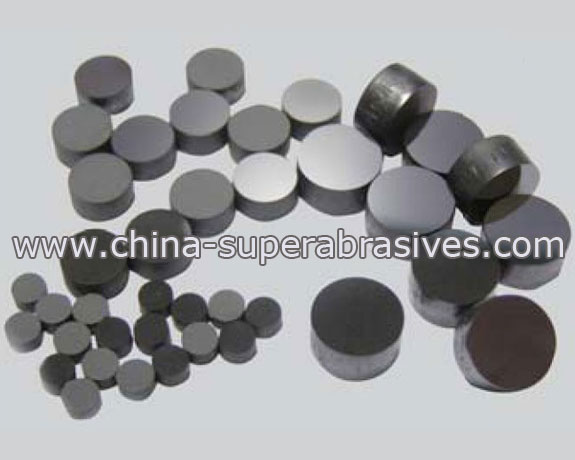

RHD diamond PCD wire drawing die blanks
RHD diamond PCD wire drawing die blanks

Specification

Size (mm)

click for large picture

Inner diameter(d)

Thickness(T)

D6-R2510

2.5

1.0

diamond PCD wire drawing die

D12-R3215

3.2

1.5

D15-R5225

5.2

2.5

D18-R5235

5.2

3.5

D21-R8040

8.0

4.0

D24-R9853

9.8

5.3

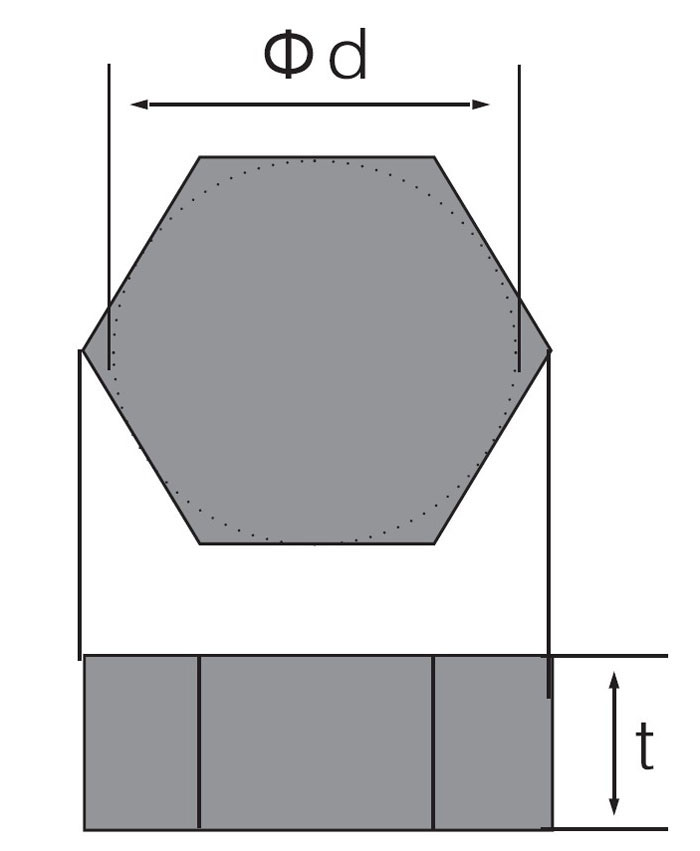

Specification

Size (mm)

click for large picture

Inner diameter(d)

Thickness(T)

D6-H2510

2.5

1.0

diamond PCD wire drawing die

D12-H3215

3.2

1.5

D15-H5225

5.2

2.5

D18-H5235

5.2

3.5

D21-H8040

8.0

4.0

D24-H9853

9.8

5.3

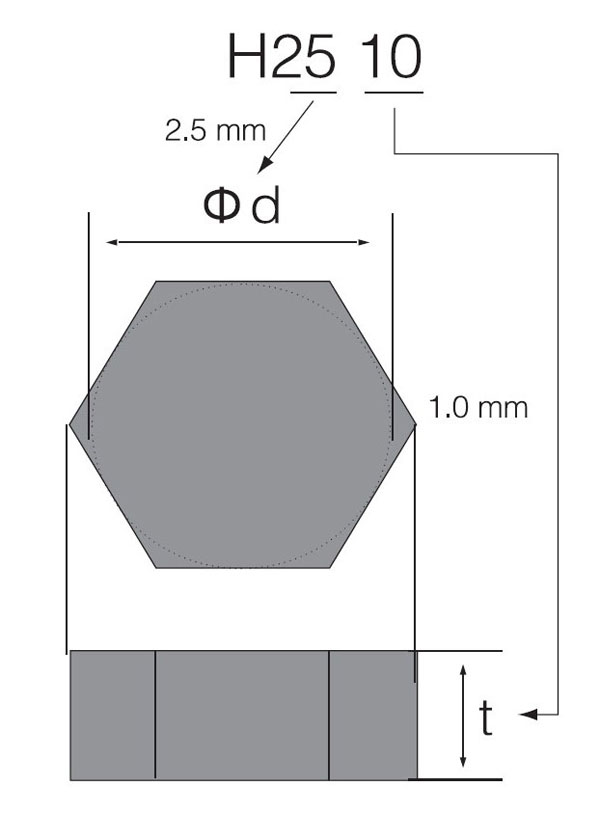

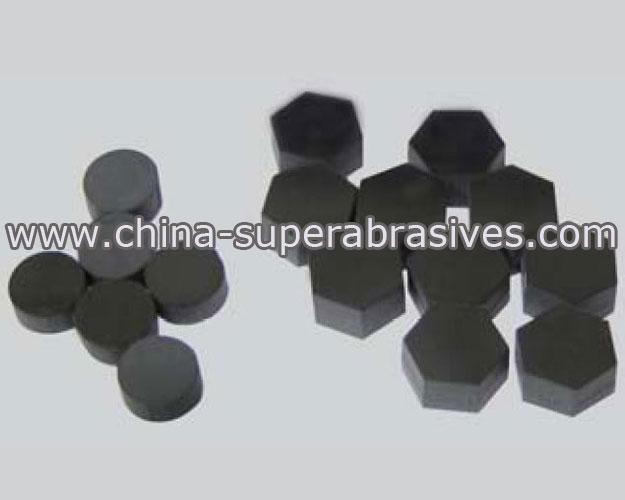

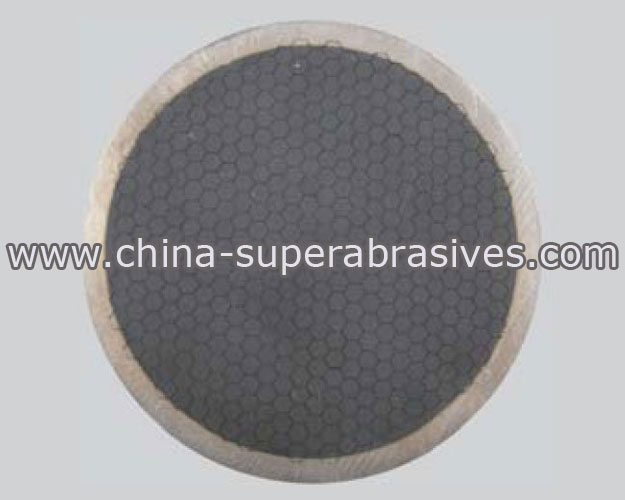

                                     Imported PCD wire drawing die blanks

Imported diamond microstructure is in compact and homogeneous distribution, and diamond wire drawing die has features of good abrasive resistance, long service life, high smooth finish. suitable for wire drawing of brass wire, steel wire, all kinds of nonferrous metal wire and alloy wire.

imported diamnd PCD wire drawing die imported diamnd PCD wire drawing die
Imported diamond PCD wire drawing die blanks
Imported diamond PCD wire drawing die blanks

Specification

Size (mm)

click for large picture

Inner diameter(d)

Thickness(T)

D6-H2510

2.5

1.0

imported diamond PCD wire drawing die

D12-H3215

3.2

1.5

D15-H5225

5.2

2.5

D18-H5235

5.2

3.5

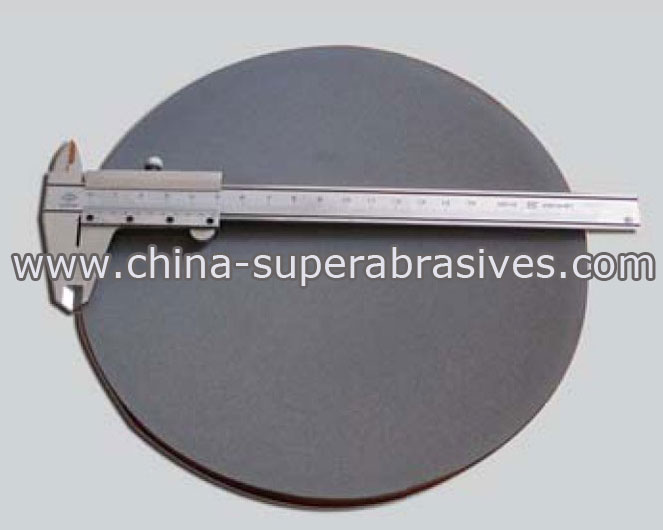

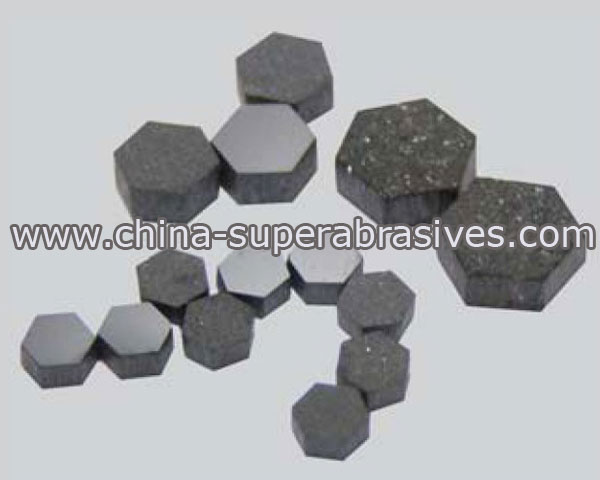

                                              CVD wire drawing die blanks

CVD wire drawing die is used for cold drawing and hot drawing of all kinds of metal wire,especially for tungsten filament, molybdenum filament, steel wire, aluminium wire, brass wire.
1). It has extra high smooth finish and extra long service life.
2). Without size limitation, CVD price is much lower than monocrystalline diamond
3). Isotropy on the view of macroscopic, so omnidirectional abrasion wearing during processing and usage.
4). CVD has good abrasive resistance and high thermal resistance, which is close to high grade monocrystalline diamond, and far better than PCD material

CVD diamnd PCD wire drawing die CVD diamnd PCD wire drawing die
CVD diamond PCD wire drawing die blanks
CVD diamond PCD wire drawing die blanks

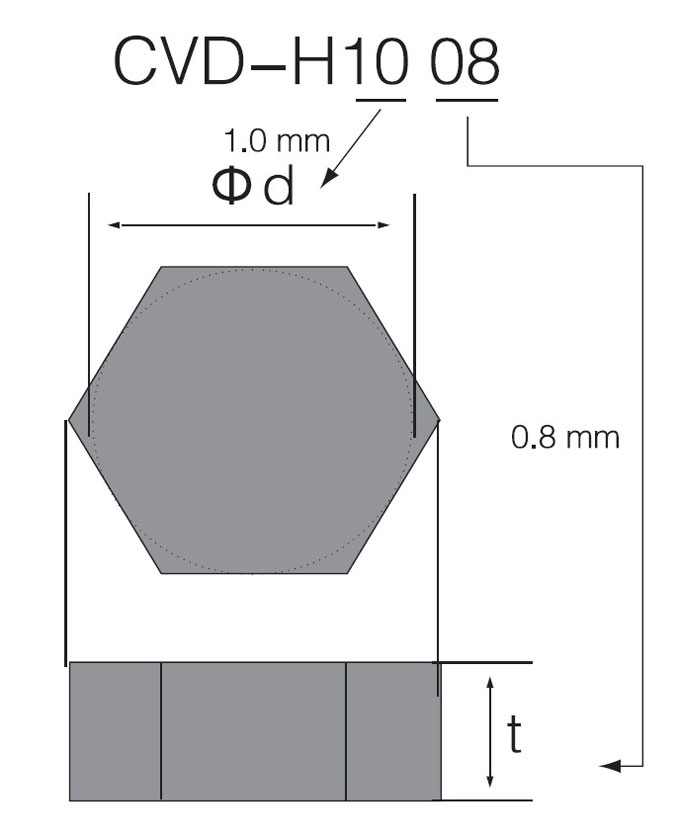

CVD diamond wire drawing die common sizes in mm (R/H)

click for large picture

1206

1208
1210
1515
3820
CVD diamnd PCD wire drawing die

1506

1508
1510
2015
4020



1808
2510
2515
5225

2008
3010
3015
2508
3215

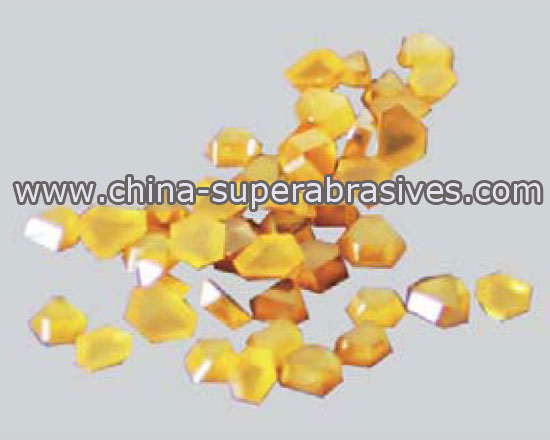

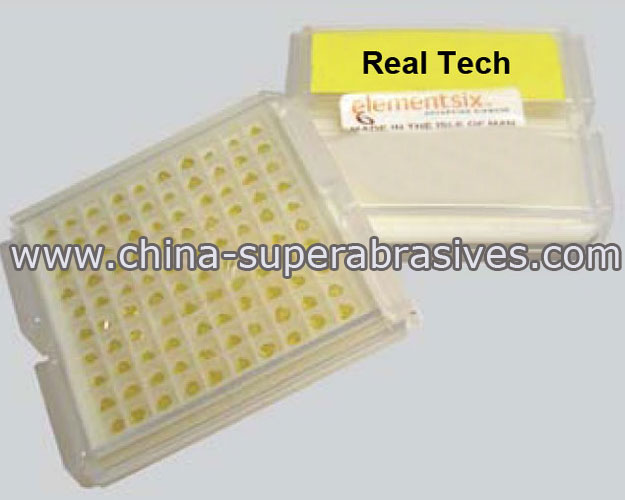

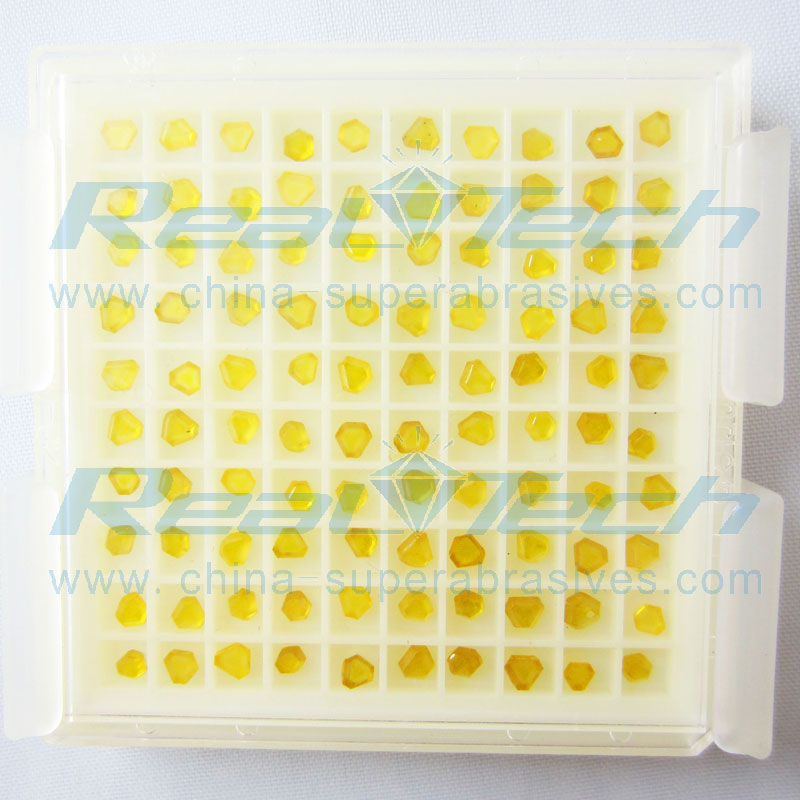

                                    Monocrystalline wire drawing die blanks

monocrystalline diamond wire drawing die is used for cold drawing and hot drawing of all kinds of metal wire, it has extra high smooth finish and extra long service life.
monocrystalline diamond wire drawing die has advantages in high hardness,good abrasive resistance,high strength,good thermal conductivity,low friction coefficient with nonferrous metal,good anti-cohesive property,erosion resistance and chemical durability. so monocrystalline diamond wire drawing die is widely used in mechnical processing and especially important in ultraprecision machining

monocrystalline diamond wire drawing die monocrystalline diamond wire drawing die monocrystalline diamond wire drawing die blanks
monocrystalline diamond wire drawing die
monocrystalline diamond wire drawing die
monocrystalline diamond wire drawing die blanks

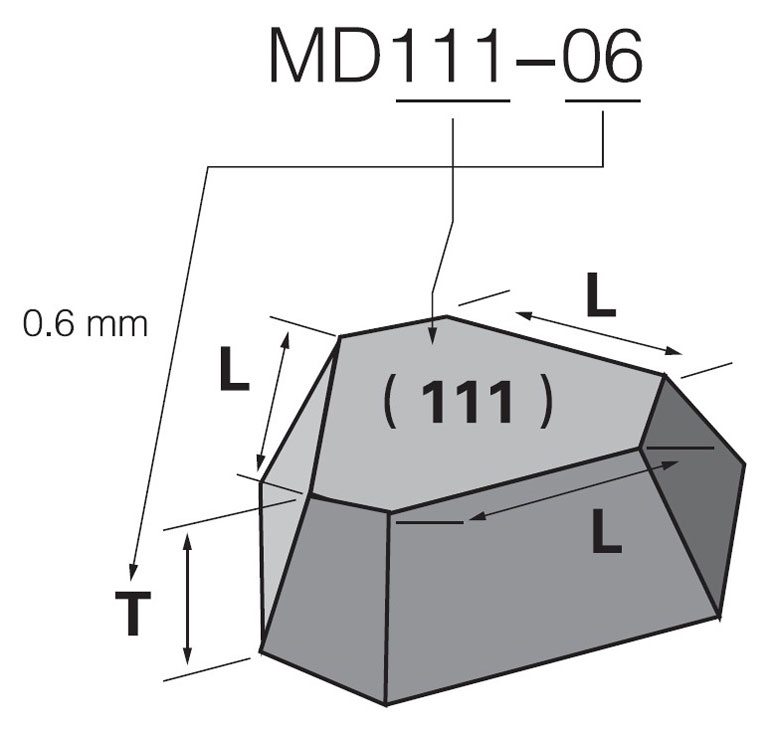

Monocrystalline diamond wire drawing die common sizes

click for large picture

MD-06

MD-07
MD-08
MD-09
monocrystalline diamond wire drawing die

MD-10

MD-11
MD-12
MD-13

MD-14

MD-15
MD-16
MD-17

MD-18

MD-19
MD-20





Our diamond wire drawing die blanks have three series: RTH Series,RTR and RTY Series. In each series, there are 4 grain sizes available to choose from based on the application of wire drawing: 3 micron, 5 micron, 10 micron, and 25 micron.
RTH and RTR Series diamond wire drawing die blanks contains self-supported PCD die blanks which include the Hexagonal type and the Round type in various sizes. These blanks are suitable for all types of wire drawing applications especially where cost-cutting is required. RTY Series diamond wire drawing die blanks includes tungsten carbide supported PCD die blanks in round shape of various sizes. These products have a polycrystalline diamond core integrally bonded to a tungsten carbide support ring which in turn enhances the strength of the die blanks. These features allow the products stronger ability to withstand wire drawing with high intensity.

Self-Supported PCD Wire Drawing Die Blanks (Hexagonal)

Product Code

ADDMA Code

Dimension (mm)

Max. Die Size
(mm)

Avg. Grain Size  (um)

hexagonal wire drawing die

D

d

T

3

5

10

25

RTH2010

\

2.0

1.0

RTH2510

D6

-

2.5

1.0

0.4

RTH215

D12

-

3.2

1.5

1.0

RTH5225

D15

-

5.2

2.5

1.5

RTH5235

D18

-

5.2

3.5

2.0

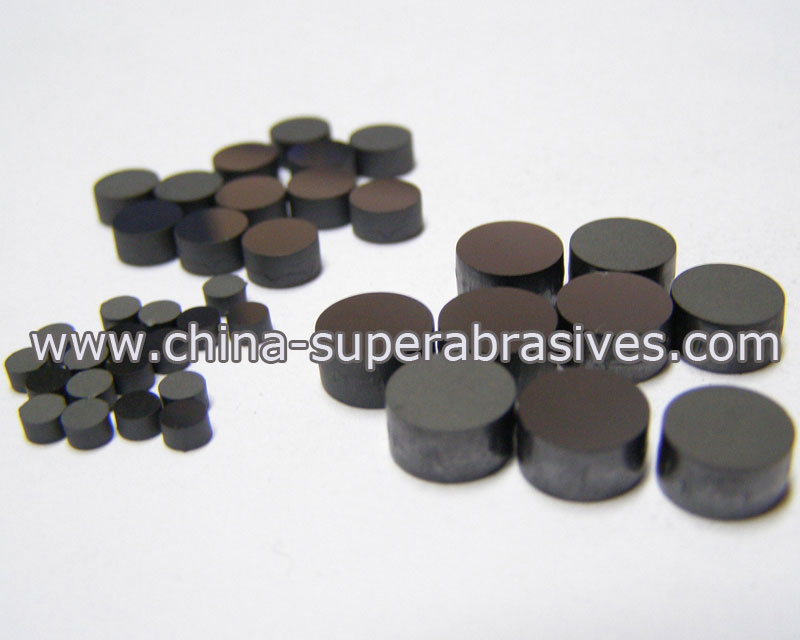

Self-Supported PCD Wire Drawing Die Blanks (Round)

Product Code

ADDMA Code

Dimension (mm)

Max. Die Size
(mm)

Avg. Grain Size  (um)

round wire drawing die

D

d

T

3

5

10

25

RTR2010

\

-

2.0

1.0

RTR2510

\

-

2.5

1.0

0.4

RTR3110

D6

-

3.1

1.0

0.5

RTR3115

D12

-

3.1

1.5

1.0

RTR5225

D15

-

5.2

2.5

1.5

RTR5235

D18

-

5.2

3.5

2.0

RTR8040

D21

-

8.0

4.0

3.0

RTR9853

D24   9.8 5.3 4.0

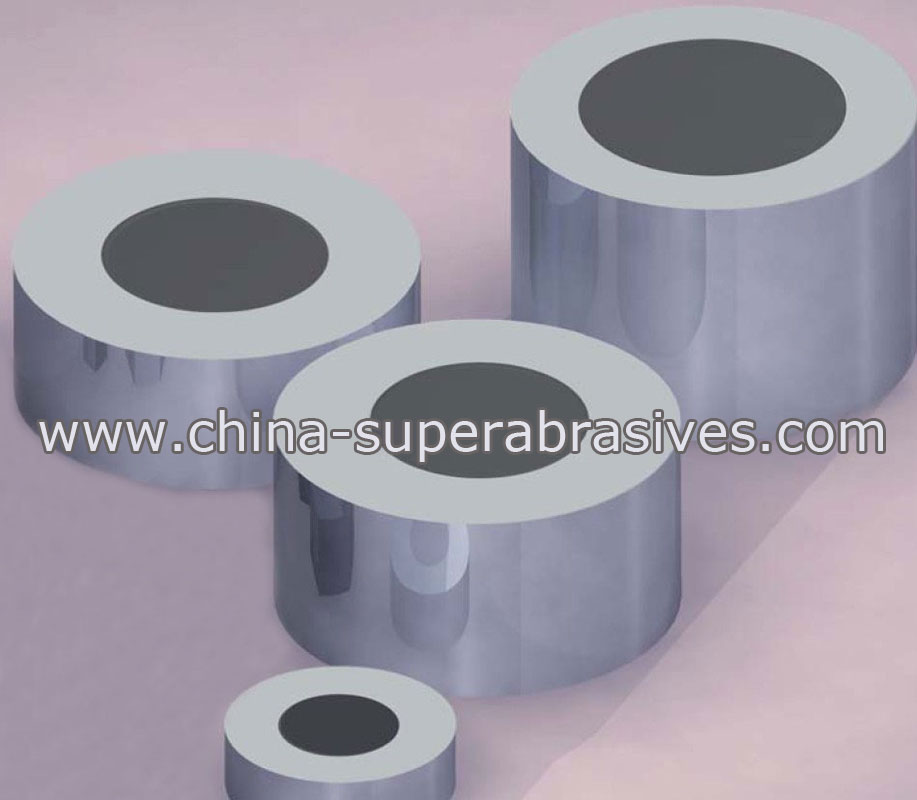

Tungsten Carbide Supported Wire Drawing Die Blanks Blanks (Round)

Product Code

ADDMA No.

Dimensions (mm)

Max. Die Size
(mm)

Avg. Grain Size  (um)

Tungsten carbide round wire drawing die

D

d

T

3

5

10

25

RTY4015

8.12

4.0

1.5

1.0

RTY4023

D15

8.12

4.0

2.3

1.8

RTY4029

D18

8.12

4.0

2.9

2.3

RTY7040

D21

13.65

7.0

4.0

3.5

RTY7053

D24

13.65

7.0

5.3

4.6

RTY13086

D27

24.13

13.0

8.6

5.8

-

-

RTY130116

D30

24.13

13.0

11.6

7.6

-

-


Diamond wire drawing die blanks not only features high wear resistance, hardness and thermal conductivity but also high mechanical strength and tenacity. Our diamond/PCD wire drawing die blanks are a unique product to draw a wide range of wire such as copper, aluminum, nickel, stainless steel and etc.
Self- Supported Series and Tungsten Carbide Supported Diamond/PCD wire drawing die blanks series all available. Tungsten Carbide Supported die blanks have a polycrystalline diamond core integrally bonded to a tungsten carbide support ring. This feature makes it well for drawing with high intensity. Self-supported die blanks include two types: Hexagonal and Round. These blanks are suitable for all types of wire drawing applications especially where cost-cutting is required.
