| We supply Sunnen diamond honing stone,Gehring diamond honing stone and Nisson honing stones,metal bond diamond honing stone widely used in processing of Black-metal, High-speed steel (HSS), Stainless steel, Alnico, Chrome and Limonite etc. The honing stone/sticks applied in the field of Molding, Compressor, Automobile Components and Sartorial manufacture , diamond and CBN honing stone also used in auto parts (connecting rod, cylinder, fork, rocker arm), sewing parts, mould making, carbide tooling and compressor industry. |
| Our company supply many types and specifications of metal bond diamond honing stone and CBN honing stones used on Sunnen,Nissin,Nagel and Gehring honing machines,we can design honing products according to customer's specific working request. |
|
| Material to be grind: |
| Diamond Honing Stone:cast iron,babbit,brass.bronze and alloy,glass,ceramics etc. |
| CBN Honing Stone:tool steel,die steel,harden steel,HT alloy steel,high-chromium cast iron etc |
|
 |

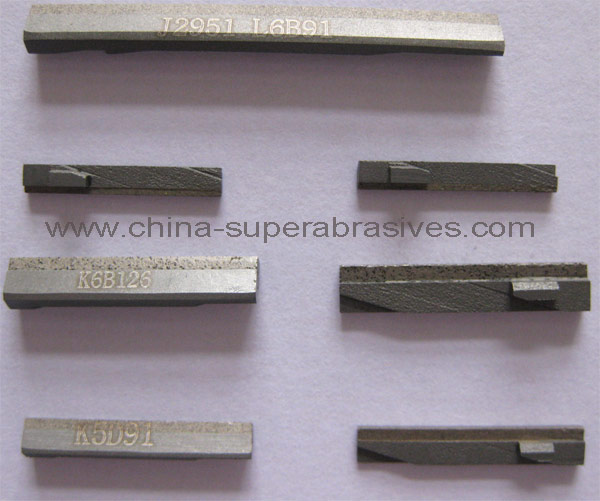

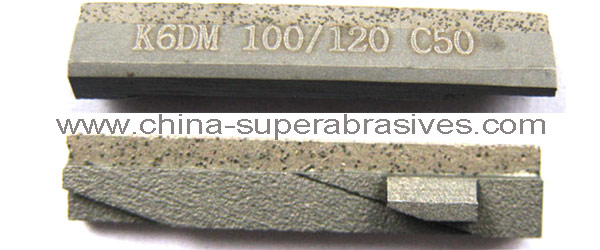

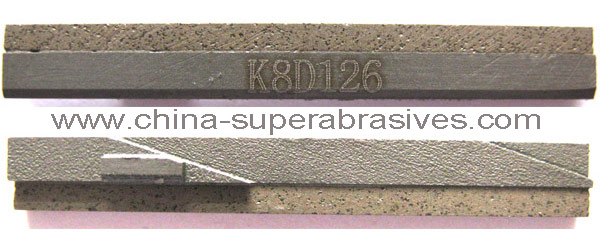

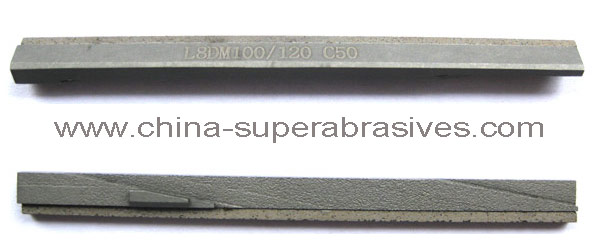

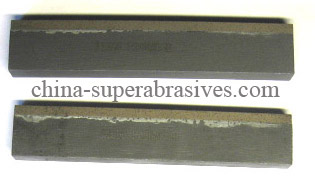

| Diamond honing stone |
|
 |

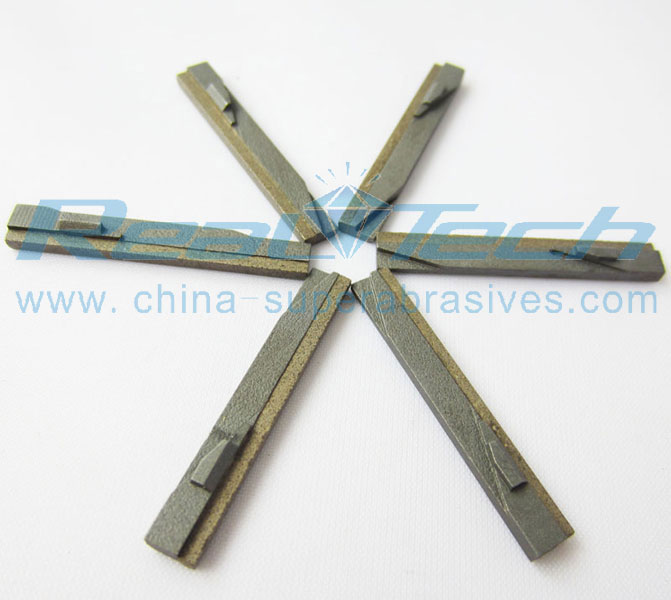

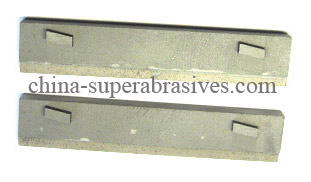

| Diamond honing stone |
|
|

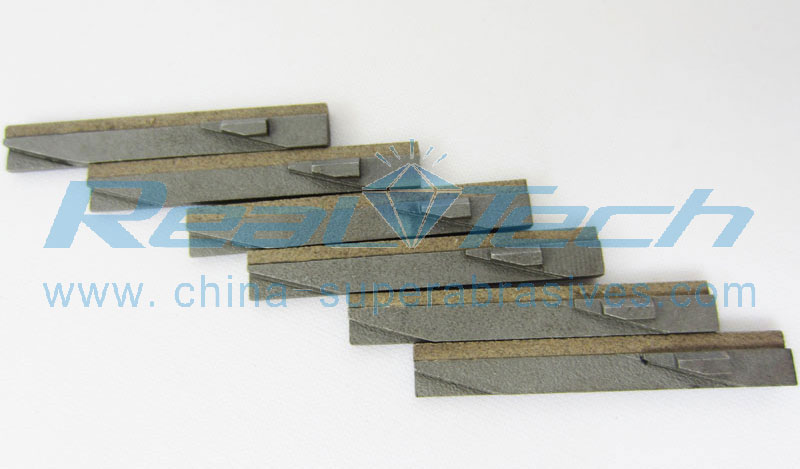

| Horizontal diamond honing Stones |

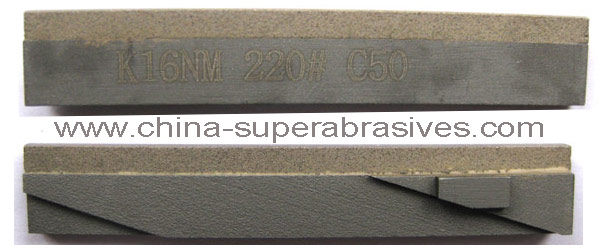

| K
series diamond honing stone |
| Series No.
|
K3
|
K4
|
K5
|
K6
|
K8
|
K10
|
K12
|
K16
|
K20
|
AK20
|
AK30
|
| Stone length
|
15
|
15
|
18
|
19
|
32
|
32
|
45
|
57
|
63
|
63
|
63
|
| Bore diameter
|
2.5-3
|
3-4
|
4-5
|
5-6
|
6-8
|
8-9.5
|
9.5-13
|
13-16
|
16-19
|
19-32
|
32-40
|
| Adapter
|
K3
|
K4
|
K5
|
K6
|
K8
|
K10
|
K12
|
K16
|
K20
|
AK20
|
AK30
|
| |
| B
series diamond honing stone |
| Series
No.
|
B8
|
B10
|
B12
|
B14
|
B16
|
B20
|
AB20
|
AB30
|
| Stone
length
|
47
|
47
|
60
|
70
|
85
|
95
|
95
|
95
|
| Bore
diameter
|
6-8
|
8-9.5
|
9.5-13
|
9.5-13
|
13-16
|
16-19
|
19-32
|
32-40
|
| Adapter
|
B8
|
B10
|
B12
|
B14
|
B16
|
B20
|
AB20
|
AB30
|
|
| |
| L
series diamond honing stone |
| Series
No.
|
L3
|
L4
|
L5
|
L6
|
L8
|
L10
|
L12
|
L16
|
L20
|
| Stone
length
|
25
|
25
|
32
|
35
|
57
|
57
|
88
|
114
|
114
|
| Bore
diameter
|
1.9-3
|
3-4
|
4-5
|
5-6
|
6-8
|
8-9.5
|
9.5-13
|
13-16
|
16-32
|
| Adapter
|
L3
|
L4
|
L5
|
L6
|
L8
|
L10
|
L12
|
L16
|
L20
|
|
| |
| Honing stones parameters |
| Code
|
NM75
|
NM55
|
NM50
|
NM45
|
NM65
|
NM85
|
NM95
|
NM15
|
NM05
|
NM04
|
NM005
|
| Grit
size
|
80#
|
100#
|
120#
|
140#
|
180#
|
240#
|
280#
|
300#
|
400#
|
500#
|
800#
|
| PEPA Grit
|
D181
|
D151
|
D126
|
D107
|
D91
|
D64
|
D54
|
D48
|
D35
|
D25
|
D15
|
| Roughness
|
2.0-1.6
|
1.6-1.4
|
1.6-1.4
|
1.4-1.3
|
1.3-1.0
|
1.0-0.8
|
0.8-0.7
|
0.8-0.6
|
0.6-0.4
|
0.4-0.2
|
0.2-0.1
|
| Stock
Removal
|
0.1-0.2
|
0.05-0.1
|
0.05-0.1
|
0.05-0.1
|
0.03-0.1
|
0.03-0.07
|
0.02-0.035
|
0.015-0.03
|
0.01-0.015
|
0.01-0.015
|
0.005-0.01
|
|
|
Vertical diamond and Borazon/CBN honing stones
|
 |
Vertical Diamond Honing Stones tapered
one side
|

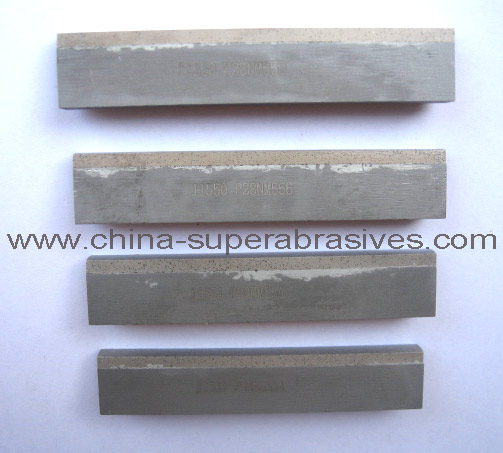

Vertical rectangular
Diamond Honing Stones
|
 |
| Length
L
|
200
|
150
|
100
|
80
|
60
|
40
|
20
|
10
|
| Width
W
|
4、6、8
|
5、6
|
5
|
5、6
|
8
|
8
|
7
|
5
|
| Height
H
|
6、7
|
6、7
|
5
|
6、7
|
8
|
8
|
8
|
5
|
| Width
C
|
1.2、1.5
|
1.2、1.5
|
1.2、
|
1.2、1.5
|
2
|
2
|
2
|
1
|
| Height
B
|
3.5、4
|
3.5、4
|
3
|
3.5、4
|
4
|
4
|
4
|
3
|
| Grit
size
|
60# 80# 100# 120# 180# 200# 280#
300#350# 400# 600# 700# 800#
1000# |
|
| Our honing stones can support
Gehring,Nagel,Sunnen,Nissin,Ari-Hone and other
types of Honing machines.Special purpose honing
stone can be available upon request. |
| |
|

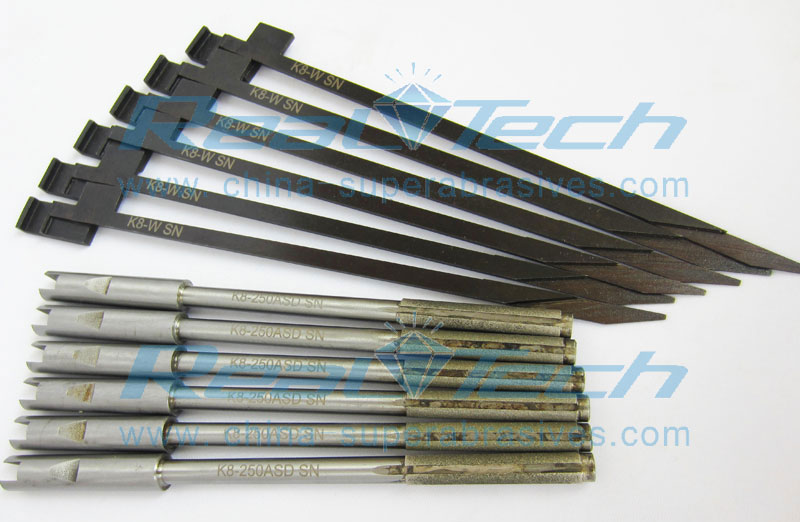

| Horizontal honing mandrels & accessaries |
 |
 |
 |

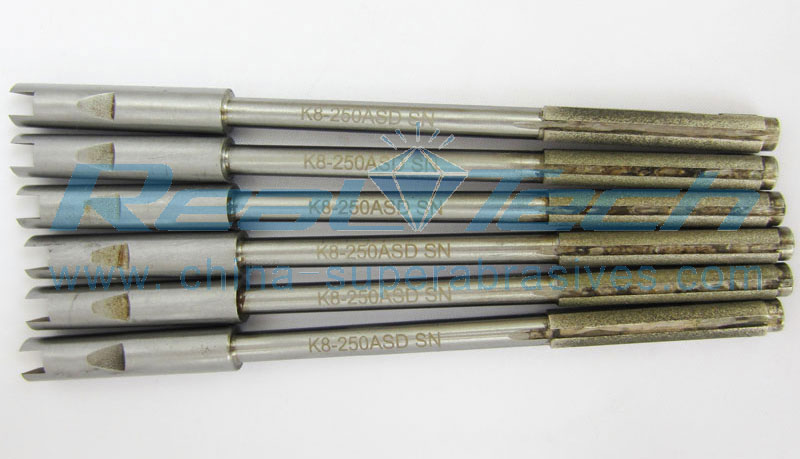

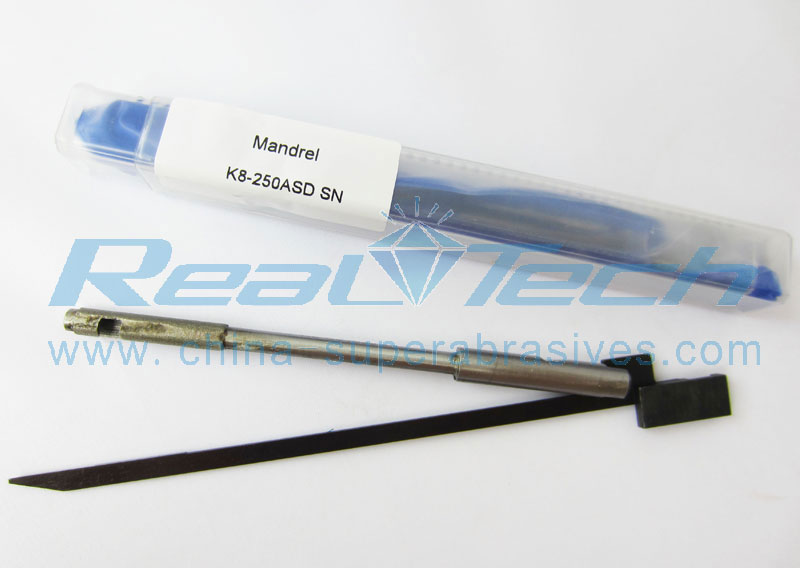

| Standard mandrels series |
Carbide shoe mandrels (Y series) |
Soft shoe mandrels (S series) |
 |
 |
|

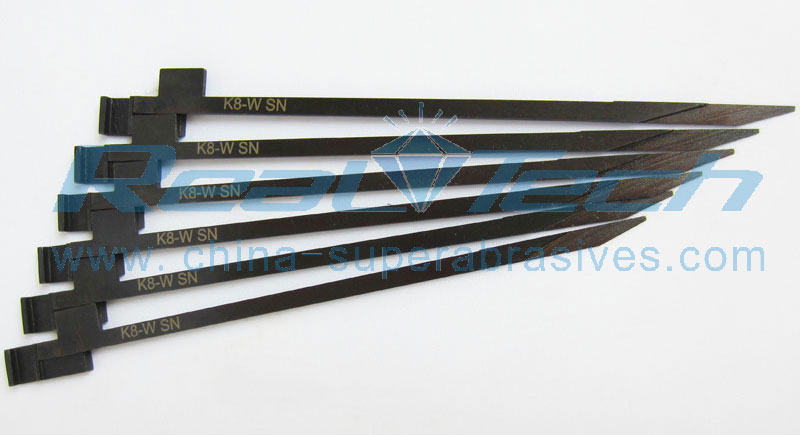

| stone retainers and wedges |
Adapters |
|
| |
 |
 |
Honing heads -Horizontal honing Honing heads |
| Honing heads is also called
Honing holders.For workpieces with bore diameter
larger than 14mm, Honing mandrel can be modified
to multi-stone honing head. We are equipped
without exception to supply honing tools
for every type of machine and tooling in use
today.This type of honing head is suitable for
Connecting Rods bore,Forks bore and Sewing
Machine Parts Honing. |
|
| Honing heads-Vertical honing Honing heads |
|
|
| The metal bond diamond and CBN honing stone and honing stick from our company features longer life, higher honing efficiency and cost effective, they can be used on Sunnen, Nissin, Nagel and Gehring honing machines, because the wide use in the auto parts (connecting rod, cylinder, fork, rocker arm), sewing parts, mould making, carbide tooling and compressor industry,our products welcomed by many foreign customers. |
| Gehring type diamond honing stones |
| L
|
125
|
120
|
100
|
100
|
80
|
70
|
60
|
25
|
18
|
| Type |
B
|
A
|
A
|
B
|
C
|
B
|
A
|
C
|
C
|
| W
|
6.5
|
4
|
4
|
6.5
|
8
|
6
|
2.4
|
2
|
2
|
| H
|
7
|
6
|
6
|
7
|
8
|
6
|
4
|
2
|
2
|
| c
|
2
|
|
|
2
|
|
1.6
|
|
|
|
| h
|
4
|
2
|
2
|
4
|
|
3
|
2
|
|
|
| |
| A— Standard type L-Length c- Slot width |
| B— Slot type W-Width h- Slot depth |
| C— Solid type H-Height h- Abrasives thickness |
| Ex. L100W6.5H7c2h4 NM55 |
|
| The outstanding performance of the stone ensures the honing of even the most difficult materials,that until now,have resisted cutting by any method.They significantly improve cutting action,overall production rates and abrasive life over other abrasive available.Most of the popular tool steels can be honed as easily as ordinary hardened steel.The dimension of the diamond honing stone can be available on your request,our produducts welcomed by customers from Detroit, MI,USA,Toyota from Japan,Stuttgart from Germany,Torin from Italy,Wolfsburg,Tokyo from Japan,Paris from France,Birmingham from UK and other Automotive Industry related areas. |
|
