  Diamond Micron Powder / Nano Diamond Powder
Diamond micron powder is the fine size synthetic diamond powder,also called diamond polishing powder or diamond lapping powder,it used in lapping,polishing,finishing,super finishing for sapphire, gemstone polishing,quartz polishing,ceramic polishing, glass, natural diamond, electronic components and other hard materials polishing etc,our diamond micron powder also suitable for making polishing pads, polishing discs, diamond /PCD wire drawing dies, polishing paste, precision grinding disc, PCD&PDC composites.

We control the diamond powders by several type of particle size analyzers, this will guarantee our factory to supply our customer the micron powder of precise particle size distrubution.We can supply micron powder sizes according to cusomters' request or sample.

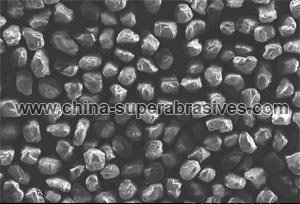

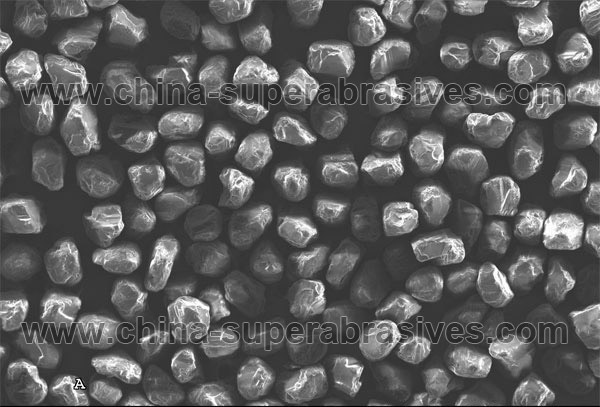

Diamond micron powder
Diamond micron powder
Diamond micron powder

We continuously seeking innovations for diamond micron powder and diamond polishing powder products ,currently our diamond micron powders / diamond polishing powder products exported to foreign countries and areas with excellent polishing results from factories and workshops.Our diamond micron powders welcome by customers from Germany,USA,India,UK ,Belgium,Thailand,Korea,Japan etc.As a supplier and manufacturer diamond micron powder (diamond polishing powder) ,our products are of the following grain sizes: W0.5 (0-0.5 micron), W1.0 (0-1micron), W1.5 W2.5 W3.5 W5 W7 W10 W14 W20 W28 W40 W50 W60 / (M1,M1.6,~,M40) ,it also called 0-0.25,0-0.5,0-1,0.5-1,0.5-1.5,0-2,1-2,0.5-3,1-3,1.5-3,2-3,2-4,2-5,3-6,3-7,4-8,4-9,5-10,5-12,6-12,7-14,8-16,8-20,10-20,12-22,12-25,15-25,20-30,22-36,30-40,30-50,36-54,40-60,50-70,54-80 other wide range or narrow range size of diamond powder is available up on user's request.

Nano diamond powders, our nano grade diamond polishing powder / lapping powder / finishing powder is produced from the dissociative carbon in super high pressure and temperature during the detonation by the oxygen-negative explosive. The nano diamonds, with 5 - 20 nanometer basic sizes, have sphere shape and functional group of oxygen and nitrogen on the surface. It possesses characteristics of both diamond and nano functional material.
nanometer diamond is achieved from the dissociative carbon in super high pressure and temperature during the detonation by the Oxygen-deficient explosive. The nanometer diamonds, with 5 - 20 nanometer basic sizes, have sphere shape and functional group of oxygen and nitrogen on the surface. Specific surface area of nanometer diamond improves an order of magnitude more than common diamond. It possesses characteristics of both diamond and nanometer functional materials.
Depending on requirements of different applications, nanometer diamond primary products should pass procedure of purification, surface modification and precise grading treatment, which are our exclusive technology. Different post-processing can separately achieve black powder products (containing graphite carbon layer on the surface) and pure grey nanometer diamond powder products; therefore, we can provide all series of nanometer diamond products with full specifications and types.
Nano diamond powders characteristics for Super finish polishing :
1. Stable high dispersibility
2. Various dispersible products
3. Characteristic anti-causticity.
4. High specific surface area,porous structure.
5. Superhigh purity, main element impurity below 30 ppm
6. Super polishing effect with minus 0.8 nm surface roughness
7. Characteristic surface modification treatment makes stable dispersion in both water & oil medium.
8. High electrical & thermal conductivity. Outstanding wearability, anti-causticity and thermal conductivity
9. Mature stable grading technics make our products suitable for all fields that ask for strict requirements of PSD.
10. Superhigh purity, main metal impurity below ppm, purification and surface modification treatment for different needs make surface functional group controllable.
11. Basic particles are sphere shape diamond crystal grains, which form stable specifications through secondary aggregation due to the features of nanoscale products and also possess the resistance & hardness of diamond.
nano diamond powders Nano diamond powders Classification:
Black powder series with different nano diamond contents
Grey and superfine powder series of nano diamonds
Accurate Gey nano powders at different cluster size distributions
Black powder slurry series in different cluster size distributions
Grey powder slurry series in different cluster size distributions
Available Sizes of Nano Diamond
UD50
UD80
UD100
UD120
UD150
UD200
UD300
UD500
MV
0.05
0.08
0.1
0.12
0.15
0.2
0.3
0.5
Liquid
√
√
√
√
√
√
√
√
Powder
√
√
√
√
√
√
√
√

Nano diamond polishing powders, TTD divided in hydrophilic and hydrophobic powder series, Water and Oil suspensions.
TTD

TTD nano diamond powders application field:
1. Precise polishing to achieve superfine surface smoothness;
2. Superfine surface treatment for the good texturing effect;
3. Precise grading for high removal rate of fine materials;
4. Widely used in the treatment of HDD, magnetic heads, semiconductors, gems, diamond, ceramics and exquisite industrial parts.

TTD nano diamond powders characteristics:
1. Good self-sharpness, which is similar to polycrystal diamond synthesized through conventional detonation impact;
2. Edgeless particles can effectively avoid scratches on workpieces;
3. Superpure without clusters;
4. Precisely graded with accurate PSD;
5. High removal rate, better finishes and less residual particles on workpieces.

Available Sizes of TTD Diamond
0.05
0.08
0-0.1
0-0.2
0-0.25
1-2
1-3
2-4
4-6
6-8
8-12
√
√
√
√
√
√
√
√
√
√
√
Particle Size Measuring Equipments for our micron grade and nano grade diamond powders: We control the micron grade diamond powder and nano grade diamond powder
by using different measuring equipments.
S3500 and Microtrac X100 for 0.5 micron to 40 micron diamond powder
HORIBA LA-920 for 0.15 micron to 0.5 micron diamond powder
CPS DC24000 for sizes under 100 nm (nanometer)
  Microtrac S3500 Particle Size Analyzer

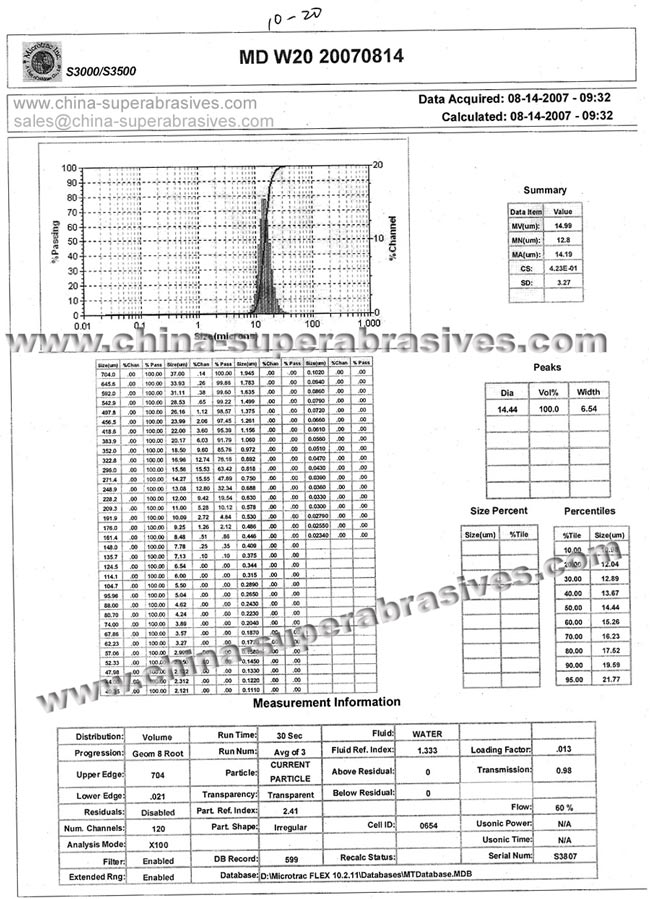

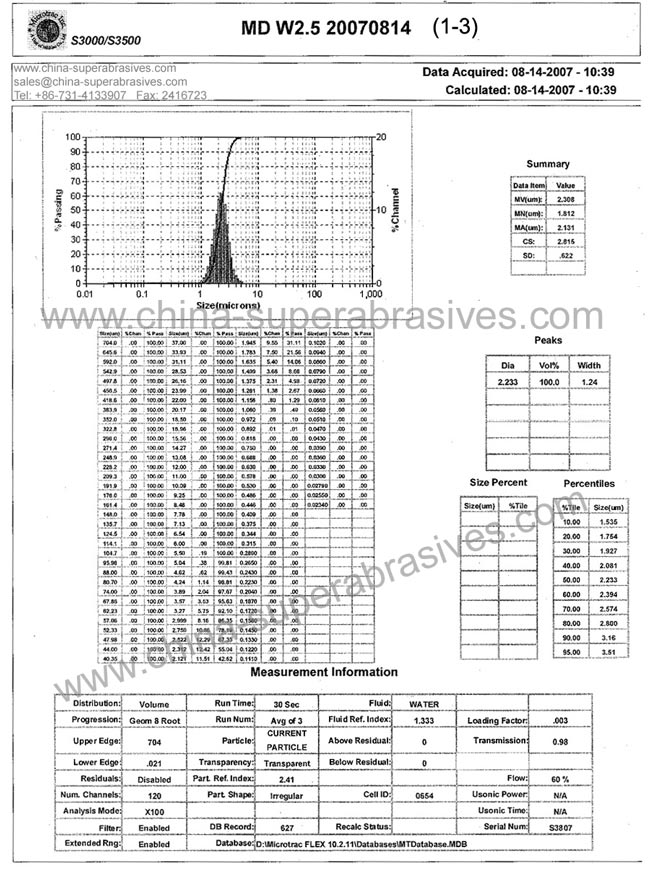

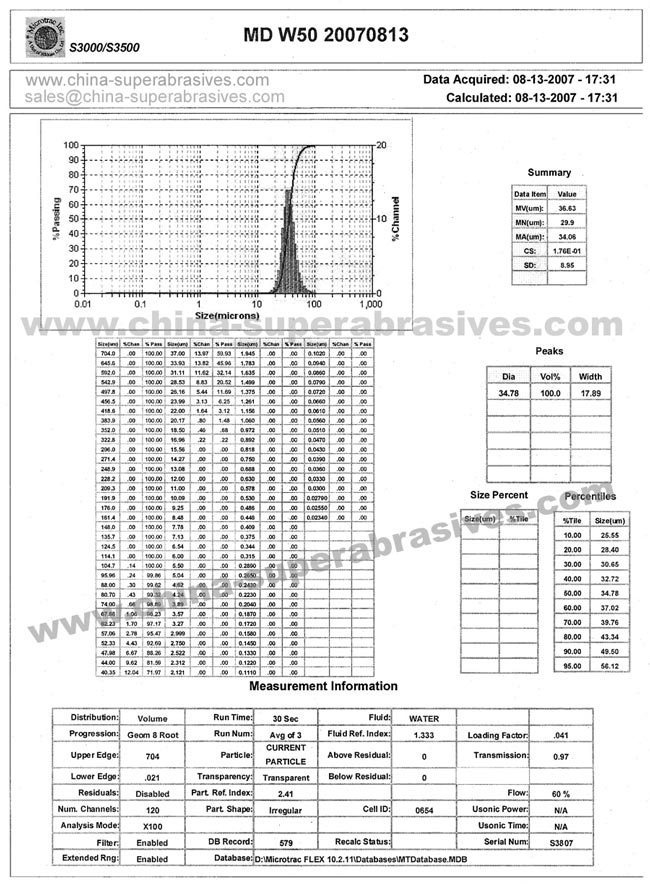

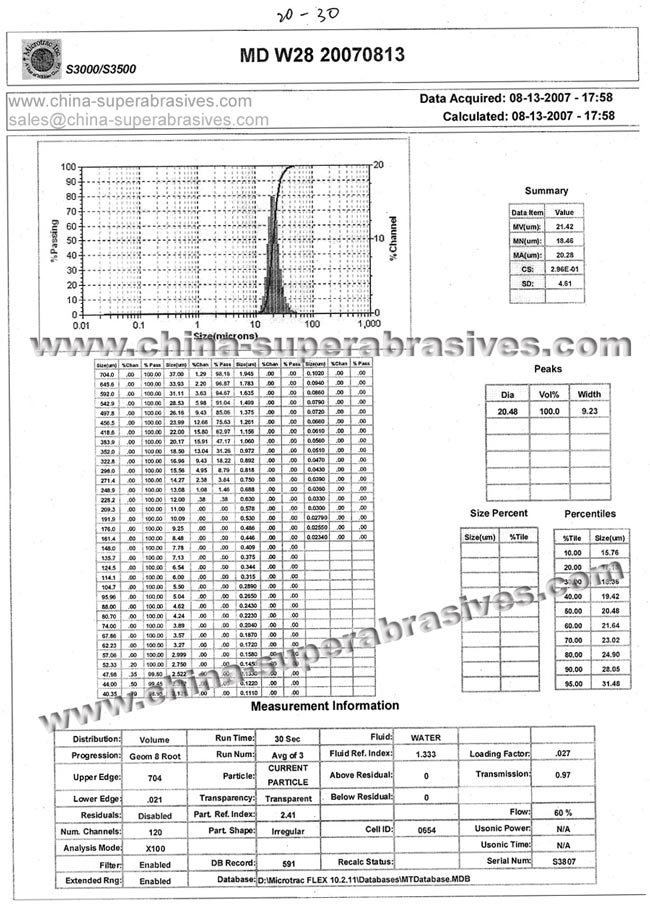

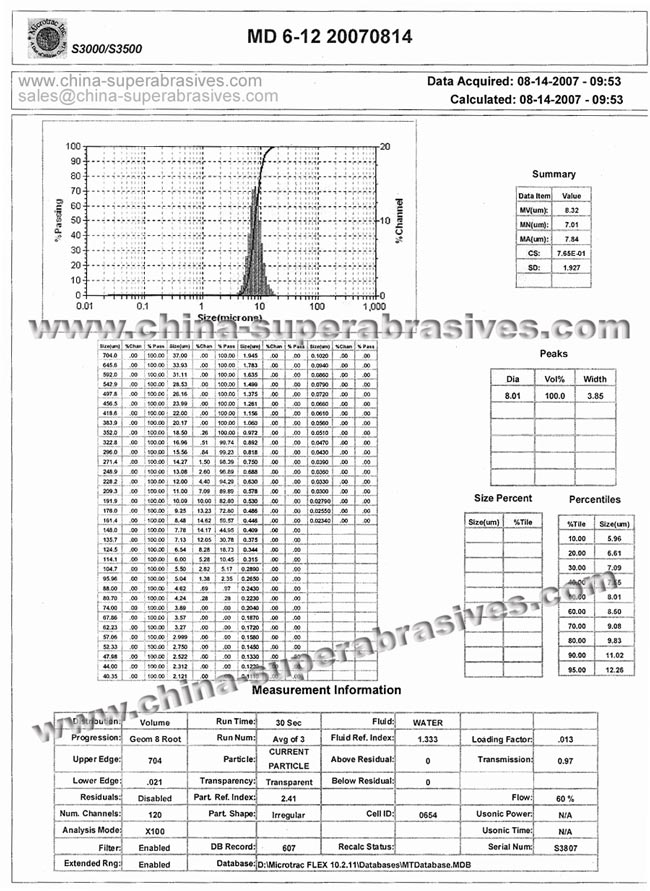

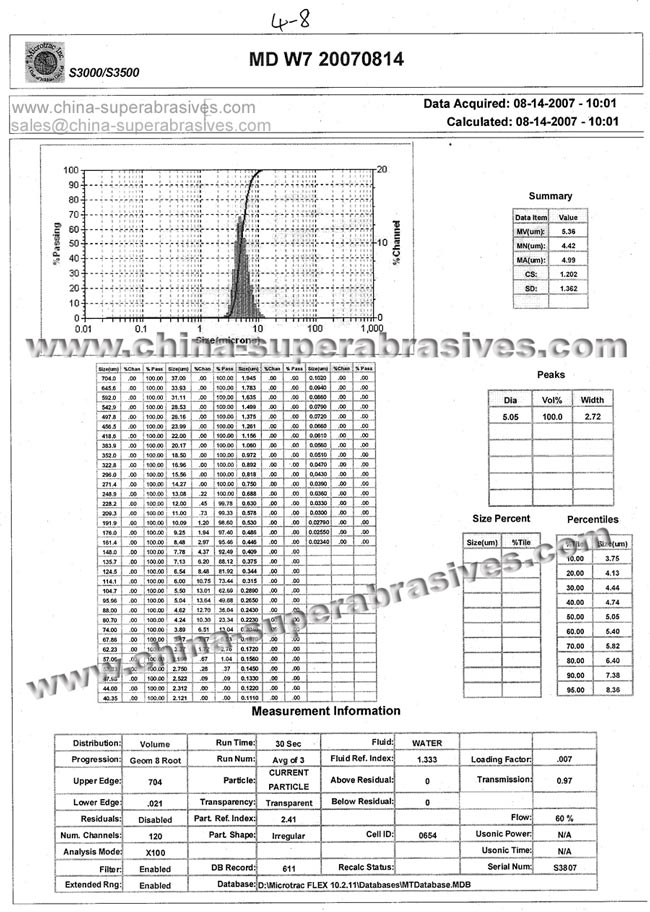

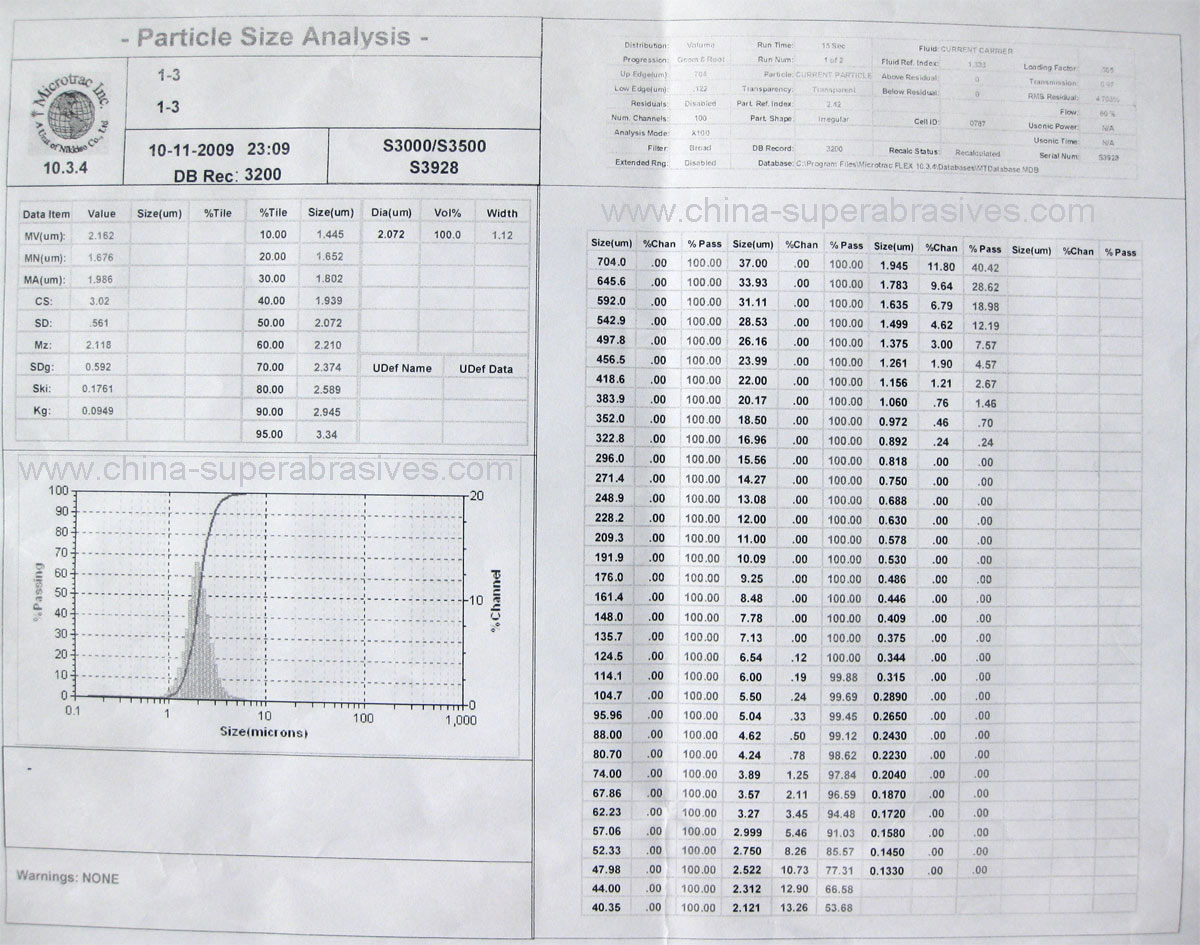

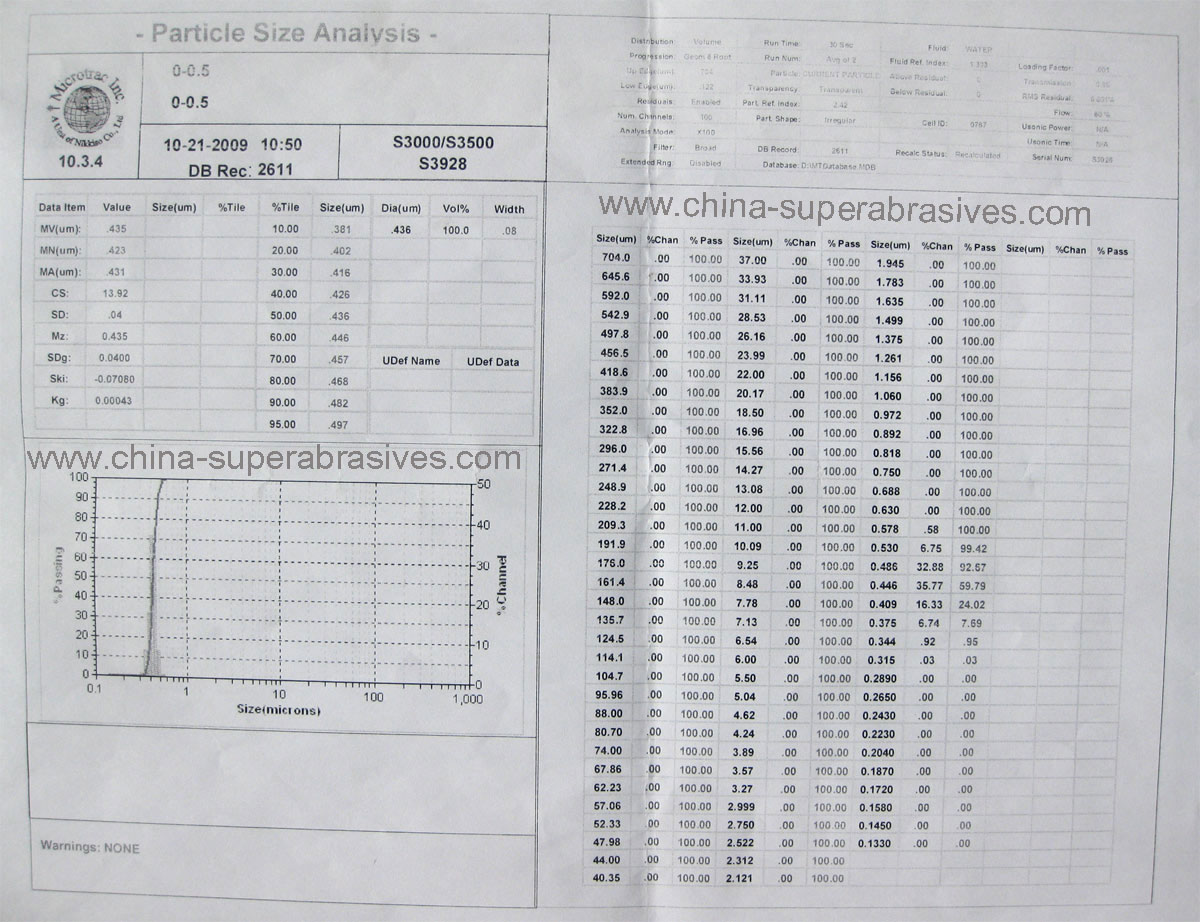

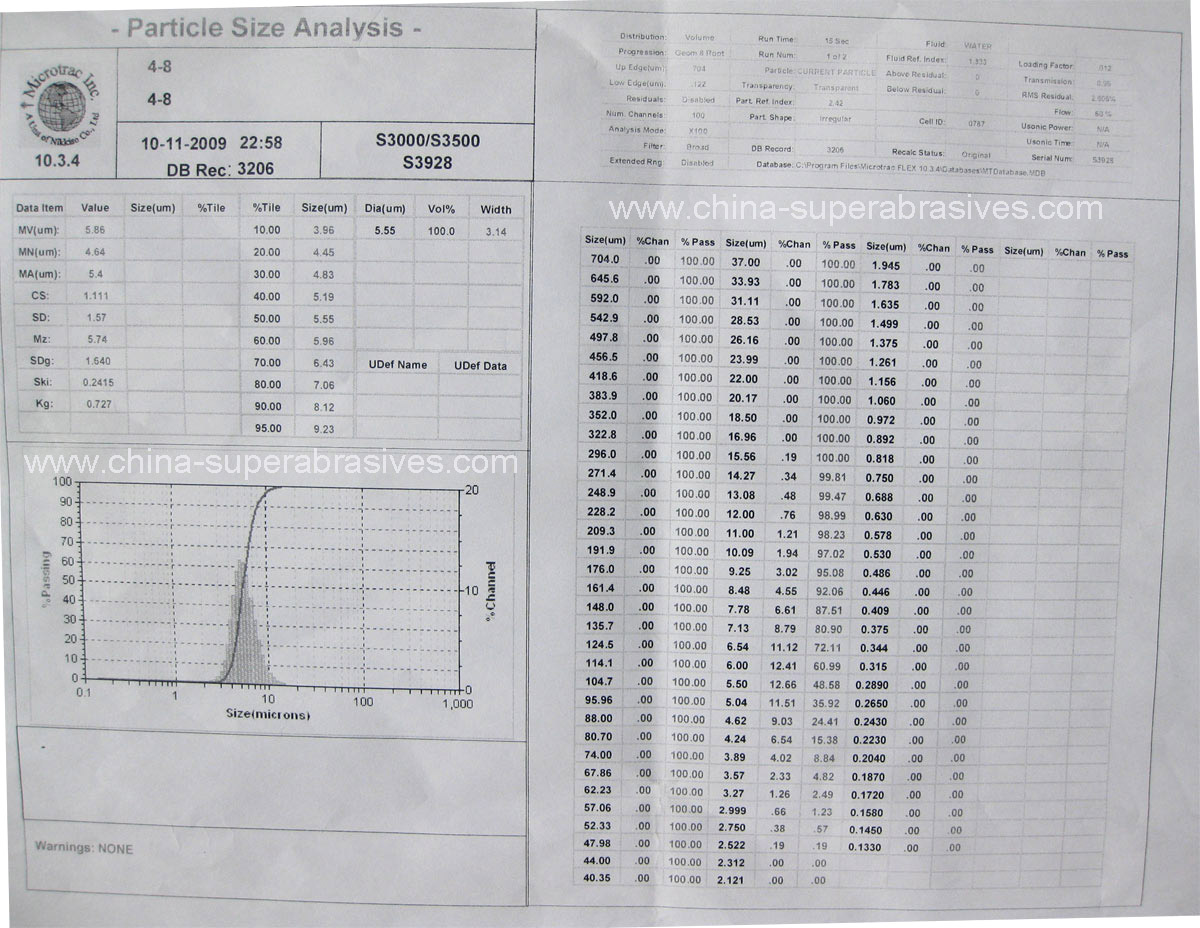

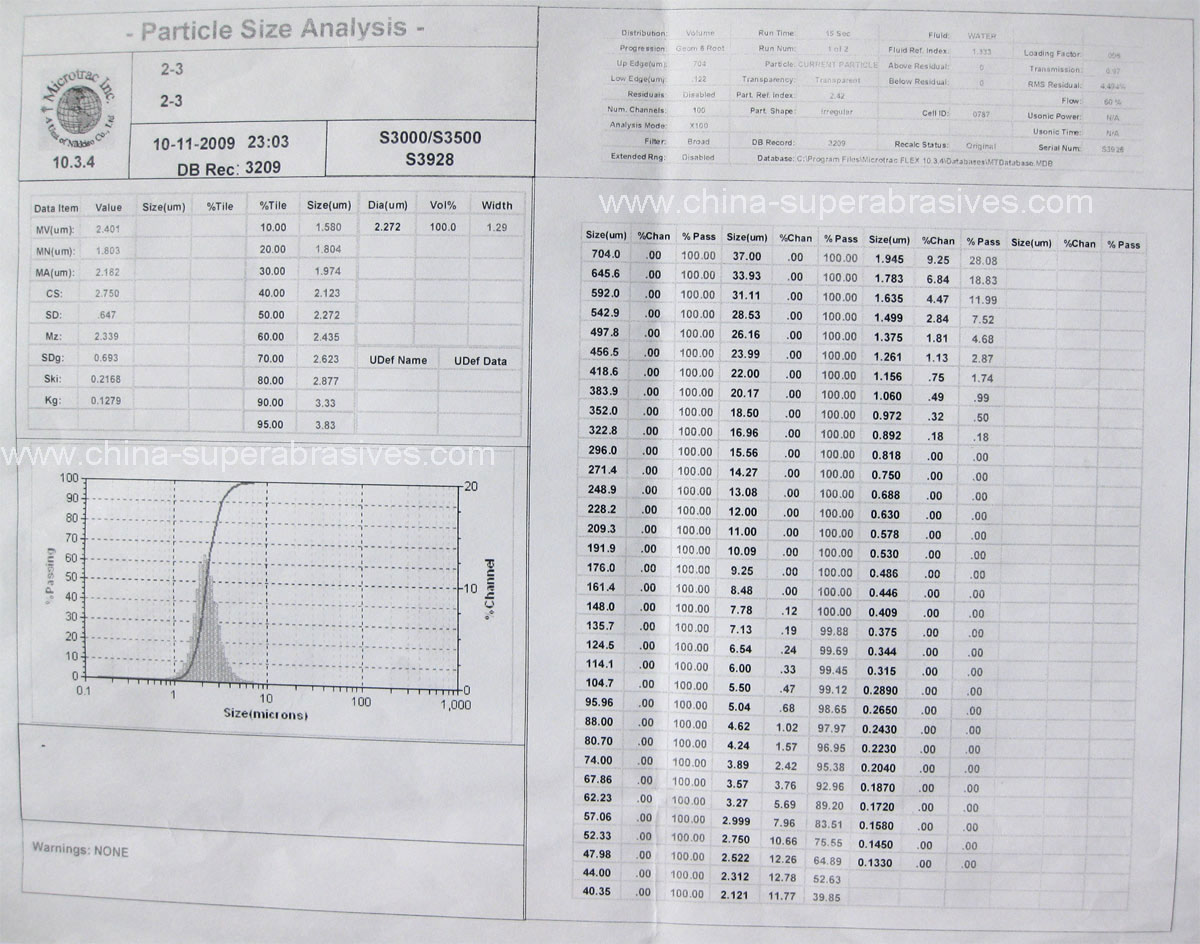

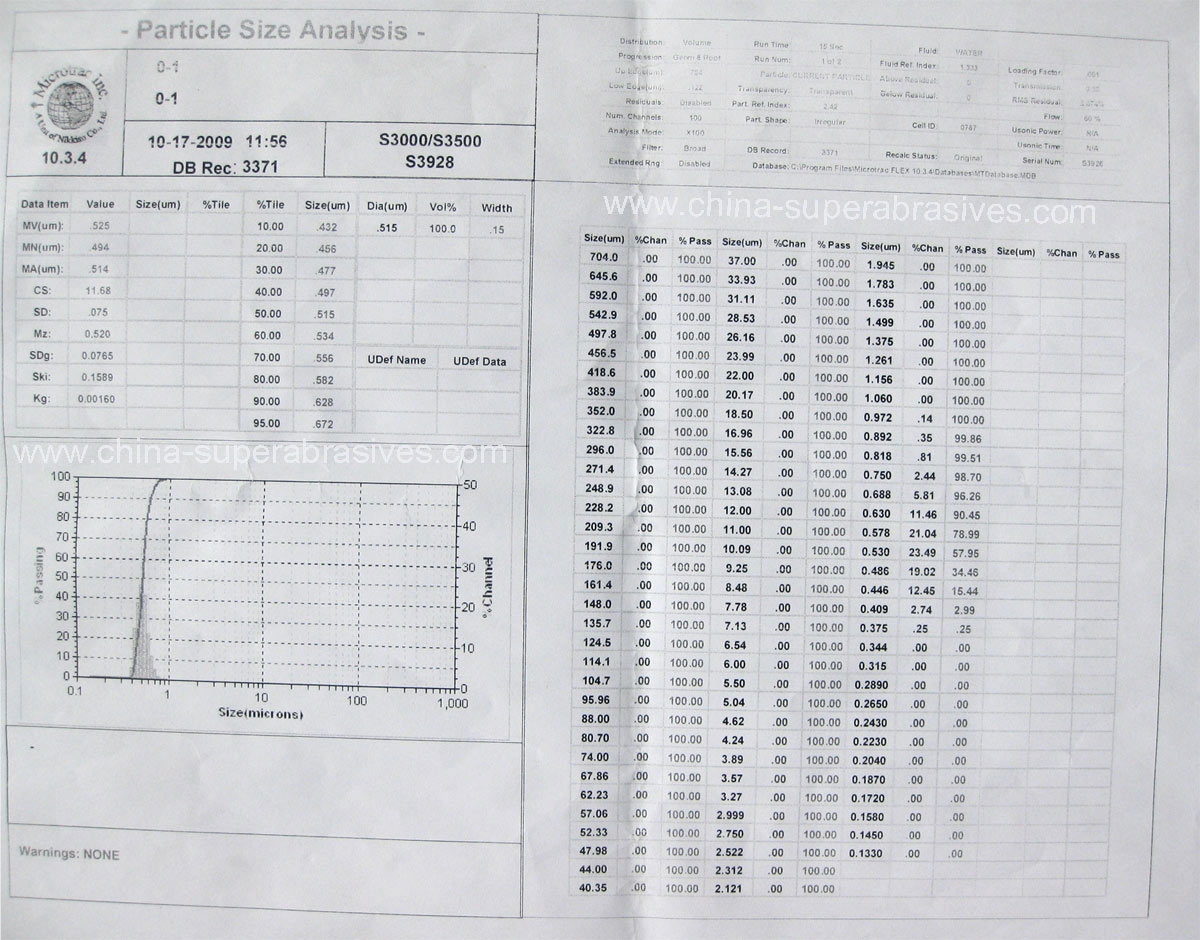

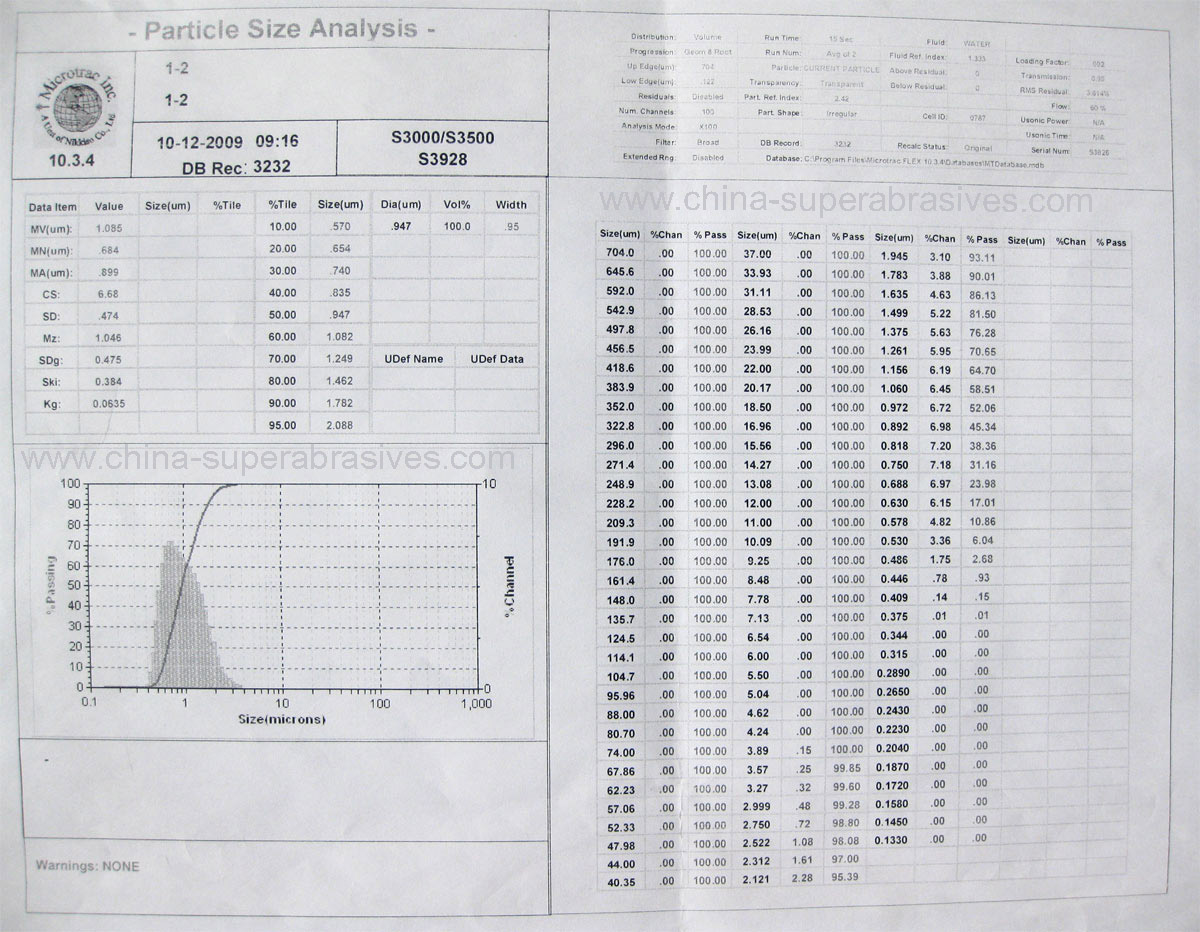

S3500 particle size distribution report chart for our diamond micron powder / polishing /lapping powder / grits
0-0.5 micron powder 0-1 micron powder 1-2 micron powder
1-3 micron powder 2-3 micron powder   4-8 micron powder
W2.5 (1-3) micron W3.5 (2-4) micron W5 (3-5 ) micron
W7 (4-8) micron W10 (5-10) micron 6-12 micron size
W20 (10-20 ) micron 22-36 micron W28 (20-30) micron
W40 (30-40) micron 36-54 micron W50 micron
Particle Size Analyzer


                            X100 particle size report for our diamond micron powders
Diamond micron powder 0-0.5 Diamond micron powder   0-2 Diamond micron powder 1-2 Diamond micron powder 2-4 Diamond micron powder  5-10 Diamond micron powder 8-15
Diamond micron powder 10-15 Diamond micron powder 15-25 Diamond micron powder 15-30 Diamond micron powder 20-30 Diamond micron powder 30-40 Diamond micron powder 40-60
ODiamond micron / polishing / lapping powder / grit micron sizes comparison chart
Product Designation Size(um) Standard of China (um) Standard of Factory Appox. Mesh

0--0.25

0--0.25

W0.25

　

0—0.4

0—0.5

W0.5

　

0—0.8

0—1

W1

15000#

0.4—0.8

0.5—1

—

　

0.4—1.2

0.5—1.5

W1.5

　

0—1.6

0—2

W2.5

　

1.2—2.3

1.5—3

W3.5

8000#

1.6—3.1

2—4

—

5000#

1.9—3.9

2.5—5

W5

4000#

2.3—4.7

3—6

W7

3000#

3.1—6.2

4—8

—

2500#

3.9—7.8

5—10

W10

2000#

4.7—9.3

6—12

—

1500#

6.2—9.3

8—12

W14

1200#

7.8—15.5

10—20

W20

800#

9.3—17.1

12—22

—

700#

15.5—23.3

20—30

—

600#

17.1—27.9

22—36

W28

　

27.9—41.9

36—54

W40

400#


Diamond slurry Diamond slurries, which are made with diamond particles completely dispersed in the mixed liquids. we have three series according to the constituents:
Monocrystaline Diamond Slurry (MDL): Good removal effects, suitable for lapping & polishing of hard material.
Polycrystaline Diamond Slurry (PDL): Superb tenacity & self-sharpening features. Suitable for lapping and polishing of precision metal material, optical crystals, ceramics and hard materials.
Nano Diamond Slurry (NDL): Good dispersing stability & suitable for precise surface treatment.
Diamond slurry sizes
Medium
MDL
PDL
NDL
Diamond slurry sizes
Medium
MDL
PDL
NDL
0.05
Water/Oil
√
√
√
1-3
Water/Oil
√
0.08
Water/Oil
√
√
√
2-4
Water/Oil
√
√
0.1
Water/Oil
√
√
√
3-6
Water/Oil
√
0.15
Water/Oil
√
√
√
4-8
Water/Oil
√
√
0.2
Water/Oil
√
√
√
5-10
Water/Oil
√
0.25
Water/Oil
√
√
√
6-12
Water/Oil
√
√
0.5
Water/Oil
√
√
√
8-16
Water/Oil
√
0-1
Water/Oil
√
√
10-20
Water/Oil
√
0.5-1
Water/Oil
√
√
15-25
Water/Oil
√
0-2
Water/Oil
√
√
20-30
Water/Oil
√
1-2
Water/Oil
√
30-40
Water/Oil
√
Silicon oxide slurries are achieved with silicon dioxide particles fully dispersed in the liquid with the available sizes as follows:
Available Sizes of silicon oxide slurry
20
40
60
80
100
120
140
√
√
√
√
√
√
√
